Lightweight Portable Mast Systems By Rolatube

Portable masts from 2m to 10m.

Lightweight, compact, and ready to deploy in minutes.

Rolatube mast systems use patented Bi-stable Reeled Composite (BRC) technology to deliver rigid, load-bearing masts from a pack size small enough to carry by hand. No telescopic sections. No moving parts. Just rollable composite that deploys from a compact roll into a fully rigid mast — and rolls back down just as easily.

Ideal for construction site lighting, temporary CCTV, communications infrastructure, and any application where you need height without the weight.

Get in Touch

System 50 Single Tube Mast

The most portable option. Heights from 2m to 4m in a pack that fits in a rucksack.

Model	Max Height	Top Load	System Weight	Tube Diameter
System 50 2m	2m (6.6ft)	10kg (22lbs)	2kg (4.4lbs)	51mm (2″)
System 50 3m	3m (9.8ft)	7kg (15.4lbs)	2.4kg (5.3lbs)	51mm (2″)
System 50 4m	4m (13.1ft)	3kg (6.6lbs)	2.9kg (6.4lbs)	51mm (2″)

Best for: Lightweight sensors, small antennas, Wi-Fi access points, and temporary lighting where minimal footprint is essential.

View System 50: Single Tube Masts

System 75 Single Tube Mast

More height and payload capacity. Heights from 3m to 7m.

Model	Max Height	Top Load	System Weight	Tube Diameter
System 75 3m	3m (9.8ft)	11kg (24.2lbs)	3.8kg (8.4lbs)	75mm (3″)
System 75 4m	4m (13.1ft)	7kg (15.4lbs)	4.5kg (9.9lbs)	75mm (3″)
System 75 5m	5m (16.4ft)	5kg (11lbs)	5.1kg (11.2lbs)	75mm (3″)
System 75 7m	7m (23ft)	2kg (4.4lbs)	8kg (17.6lbs)	75mm (3″)

Best for: Site lighting rigs, radio antennas, and monitoring equipment at moderate heights.

View System 75: Single Tube Masts

System 75 Double Tube Mast

Two composite tubes wrap around each other, significantly increasing payload stability and capacity at every height.

Model	Max Height	Top Load	System Weight	Tube Diameter
System 75 DT 3m	3m (9.8ft)	23kg (51lbs)	5.8kg (12.8lbs)	75mm (3″)
System 75 DT 4m	4m (13.1ft)	20kg (44lbs)	7.4kg (16.3lbs)	75mm (3″)
System 75 DT 5m	5m (16.4ft)	15kg (33lbs)	9kg (19.8lbs)	75mm (3″)
System 75 DT 7m	7m (23ft)	5kg (11lbs)	12.5kg (27.5lbs)	75mm (3″)

Best for: Heavier payloads — CCTV cameras, floodlights, larger camera systems, communications equipment — where you need the payload capacity of a traditional mast without the weight.

View System 75: Double Tube Masts

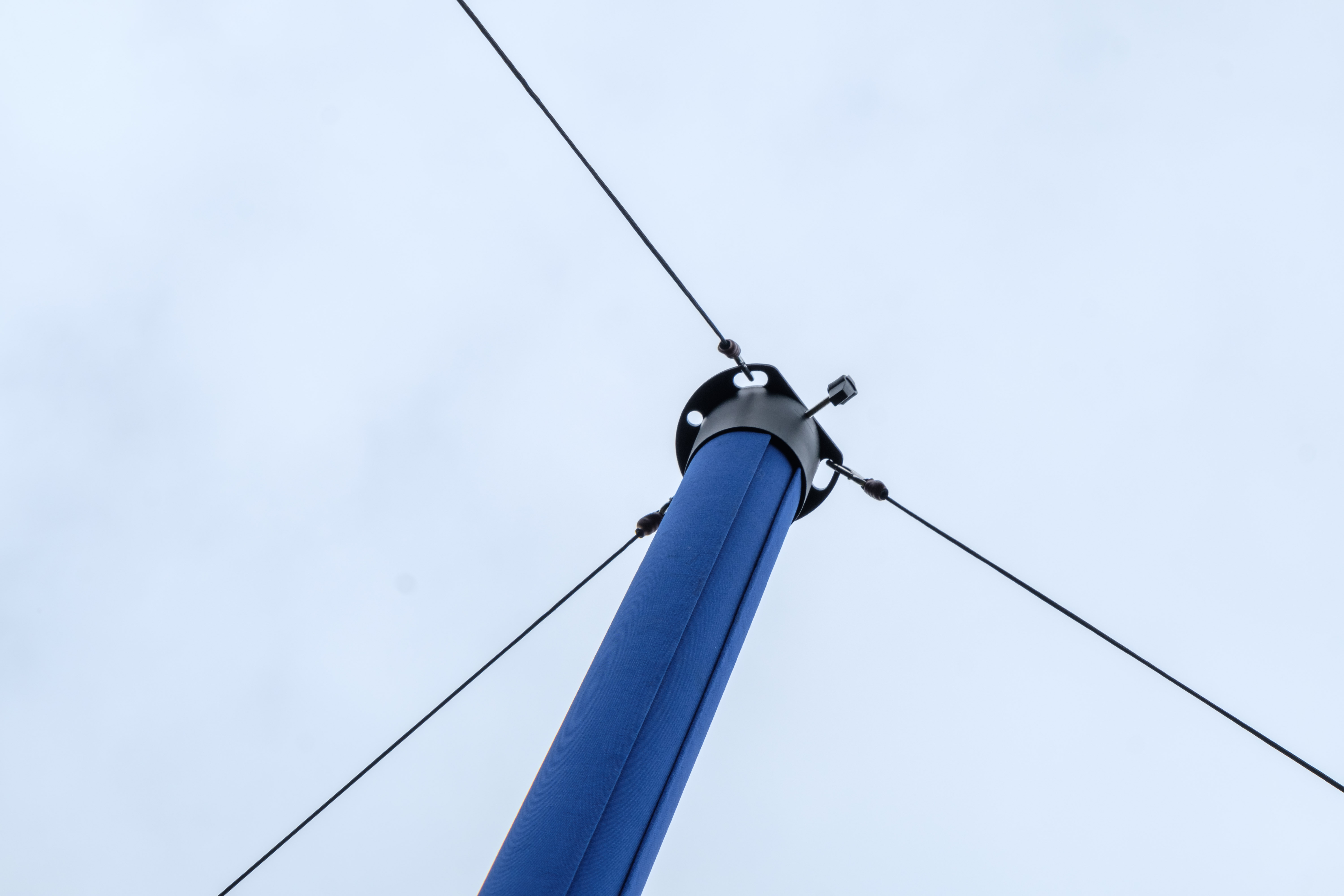

System 75 double tube mast close-up showing top cap with guy ropes

System 100 Single Tube Mast

The tallest system in the range. Up to 10m height with an integrated rolacage and foot-operated brake for ease of deployment and recovery with 2-4 personnel.

Model	Max Height	Top Load	System Weight	Tube Diameter
System 100 8m	8m (26.2ft)	15kg (33lbs)	22.7kg (50lbs)	101mm (4″)
System 100 10m	10m (32.8ft)	12kg (26.4lbs)	24.36kg (53.7lbs)	101mm (4″)

Best for: Construction site lighting towers, communications masts, and any application requiring significant height in a portable format.

View System 100: Single Tube Masts

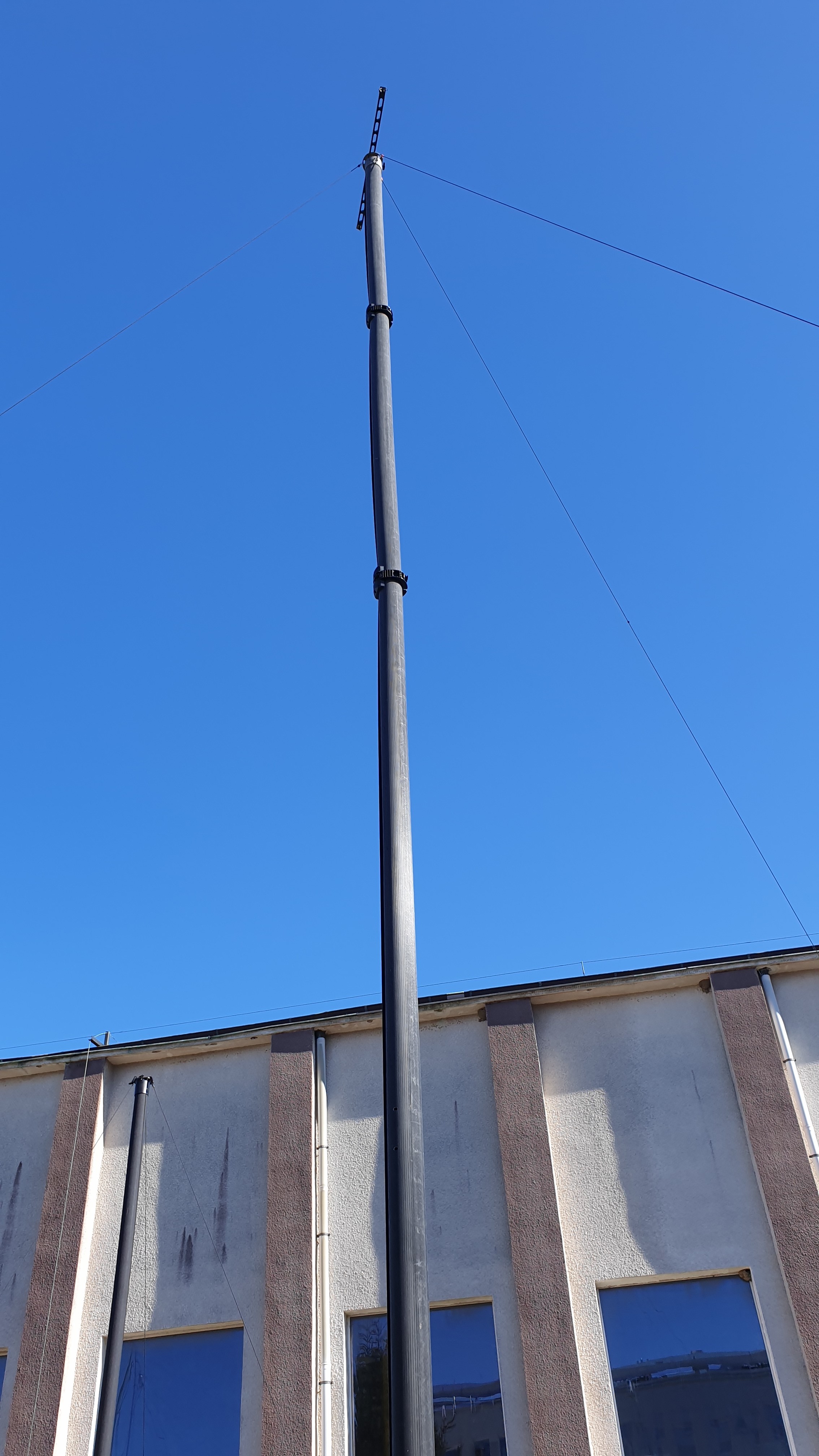

System 100 10m mast deployed at full height against blue sky

Why Rolatube?

Amazing Strength to Weight Ratio

Serious load capacity from systems that weigh a fraction of traditional alternatives.

Incredibly Compact

Every system packs down to a fraction of its deployed height.

Quick to Deploy

No complex assembly. No telescopic sections to jam. Masts deploy from their packed state and are ready to use in minutes.

No Moving Parts

Virtually maintenance-free. No hydraulics, no pneumatics, no mechanical joints to service or replace.

Built to Last

All systems withstand winds of 100kph (62mph) when correctly deployed. Weather-resistant and recoverable when iced.

Applications

Site Security Camera Temporary Site Wi-Fi, 4G/5G Small Cell Noise Monitoring Microphones Temporary GNSS Base Station Gas Leak Detection Sensors Thermal Cameras for Pipeline Monitoring Portable Weather Station Wind Resource Measurement Maintenance Inspection Cameras Environmental Compliance Sensors Railway Line Inspection Cameras Traffic Monitoring Cameras Flood Monitoring Cameras Flood Lights Temporary Site Lighting Event CCTV Cameras And many more — contact us to discuss your requirements

Let’s find the right system for your application

Every deployment is different. Get in touch and we’ll help you identify the right mast system, height and configuration for your specific requirements.
