Leg Tie for System 30 Tripod

To increase payload capability to 100kg

open image in lightbox
System 30 Tripod Leg Tie — Rolatube Data Sheet & User Guide
User Guide
Data Sheet
Components Overview

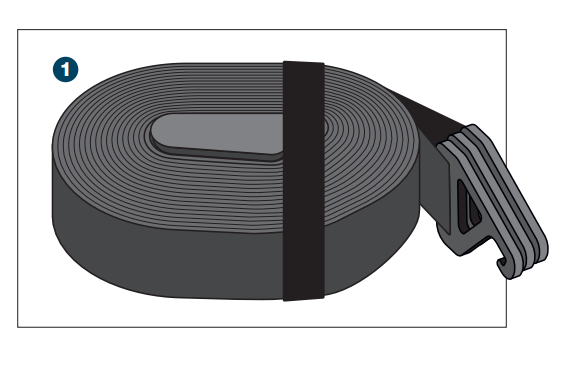

System 30 Tripod Leg Tie Assembly — item 1 with numbered callout
ItemDescription
11 × System 30 Tripod Leg Tie Assembly

Maximum top loads (with Leg Tie fitted):

  • No legs (stubby configuration): 40kg (88lb)
  • 650mm & 1250mm legs @ 25° leg angle: 40kg (88lb)
  • 650mm legs @ 45° leg angle: 20kg (44lb)
*Using the Leg Tie enables the System 30 tripods to take loads over 40kg. Contact RTL for technical guidance.
Safety Instructions

The systems are rated to the loads stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.

  1. Ensure legs are spaced evenly with an equal amount of strap between them before loading the tripod.
  2. The Leg Tie must be fitted before the tripod is under load.
  3. Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
  4. Do not use the tripod if there is visible damage.
  5. Rolatube tripod systems are rated for wind speeds of up to 100kph (62 mph) when pegged to the ground. The maximum wind rating is based on the unloaded tripod correctly deployed with pegs or foot spikes. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
  6. The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
Warnings
  1. Top load limits are subject to the user assessing the ground conditions. If the feet slip then these safe load limits are significantly compromised and the pegs, spikes or leg ties should be used.
  2. Ensure the deployment site is as flat as possible and clear of any cables or equipment that represents an electric shock hazard.
  3. Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
  4. Do not exceed the rated top load of the tripod.
  5. Ensure any top load is securely fastened.
  6. Do not allow the tripod legs to bend.
  7. Ensure the deployment site is clear of any underground hazards before using pegs.
  8. If used, ensure pegs are secure for duration of deployment.
  9. Consideration must be given to the location of any cable from the top load to avoid trip hazards.
  10. Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
  11. Rolatube tripods are only designed to function with the top load in the vertical axis.
Deployment Instructions
1

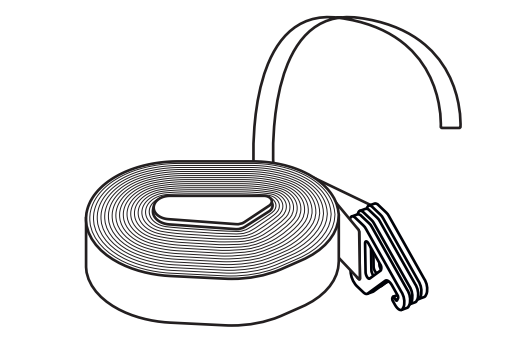

Undo Velcro Strap

Undo the Velcro strap securing the rolled leg tie assembly.

Step 1 — Undo Velcro strap on the rolled leg tie
2

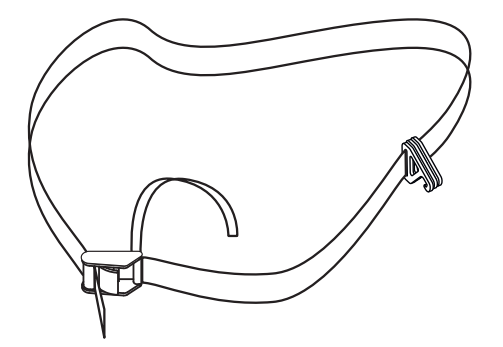

Unroll Strap

Unroll the strap fully. Ensure the strap is free from knots.

Step 2 — Unroll strap, ensure free from knots
3

Attach Centre Hook to First Foot

Attach the centre hook to any foot on the tripod.

Step 3 — Attach the centre hook to any tripod foot
4

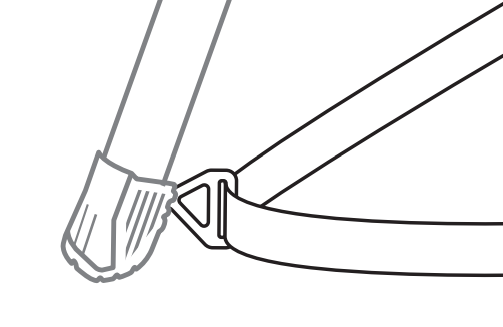

Attach Remaining Hooks

Attach the second and third hooks to the corresponding feet.

Step 4 — Attach second and third hooks to the remaining feet
5

Tighten the Strap

Hold the buckle in one hand and pull the free end of the strap to tighten.

Step 5 — Hold buckle and pull free end to tighten strap
6

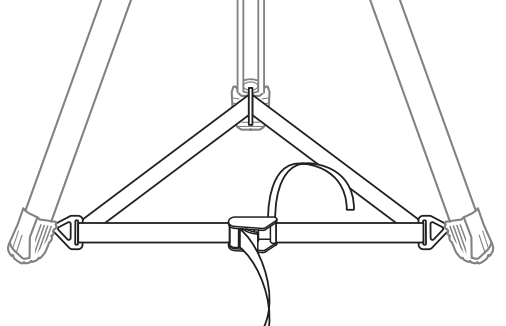

Remove All Slack

Tighten until all slack has been removed. Ensure that the feet are still evenly spaced.

Step 6 — All slack removed, feet evenly spaced, triangle strap pattern visible
Support

+44 (0)1590 688019

enquiries@rolatube.com

RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

ISO 9001 • CERT 571669
User Guide 209-000116 V1 • December 2024
rolatube.com

System 30: Tripod Leg Tie

Stabiliser strap accessory for System 30 Tripod

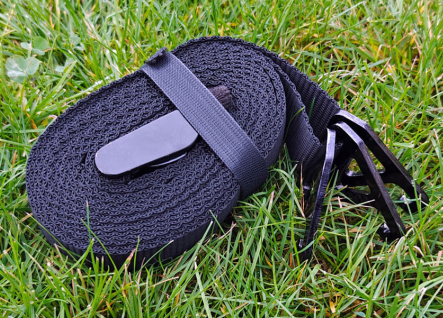

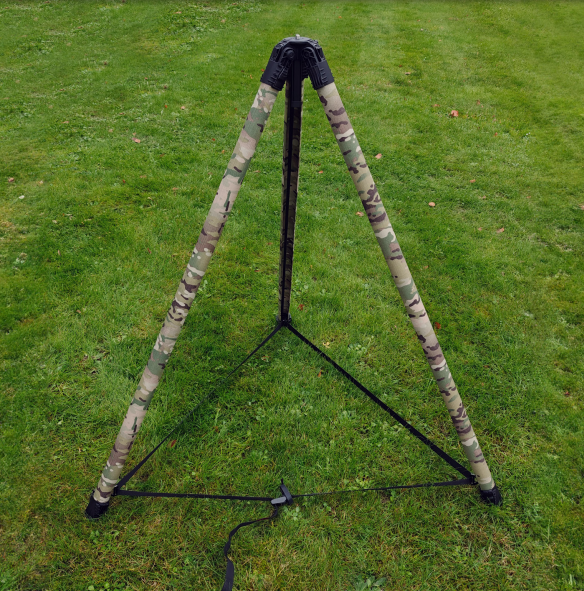

System 30 Tripod deployed with Leg Tie installed on grass System 30 Tripod Leg Tie close-up product photo on grass
System Specifications
650mm & 1250mm @ 25°
650mm @ 45°
Configuration650mm & 1250mm Legs @ 25°
Maximum Top Load1,240kg (88lb)
Configuration650mm Legs @ 45°
Maximum Top Load1,220kg (44lb)
System Weight0.19kg (0.42lb)
Packed Dimensions140 × 40 × 80mm (5.5″ × 1.5″ × 3.25″)
Packed Volume0.000448 m³ (0.016′³)
System ComponentsLeg Tie For System 30 Tripod
ConstructPolypropylene Webbing, Stainless Steel
FinishBlack
EnvironmentalCompliant with the relevant sections of MIL-STD-810H
MIL-STD-810H
1 Top load limits are subject to the correct installation of the stabiliser strap following the user guide. To be effective the leg tie must be fitted before any top load is applied to the tripod.
2 Using the Leg Tie enables the CTT to take loads over 40kg. Contact RTL for technical guidance.
Product Components

System

SystemPart NumberNSN
System 30 Tripod Leg Tie207-1900015340-99-578-4541

Components

ComponentPart NumberNSNQty
System 30 Tripod Leg Tie Assembly800-500052N/A1
Contact

+44 (0)1590 688019

enquiries@rolatube.com • www.rolatube.com

RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

ISO 9001 • CERT 571669
Disclaimer: The technical and operational information contained within this document relates only to the specific product referred to in this document and may not be applicable when such product is not used in accordance with such operational instructions. The Company reserves the right to change technical and operational information from time to time. A copy of the latest version is available on the Company’s website: www.rolatube.com. A copy of the Company’s terms and conditions of business are also included on the Company’s website.

Data Sheet 209-000117 V2 • February 2025
