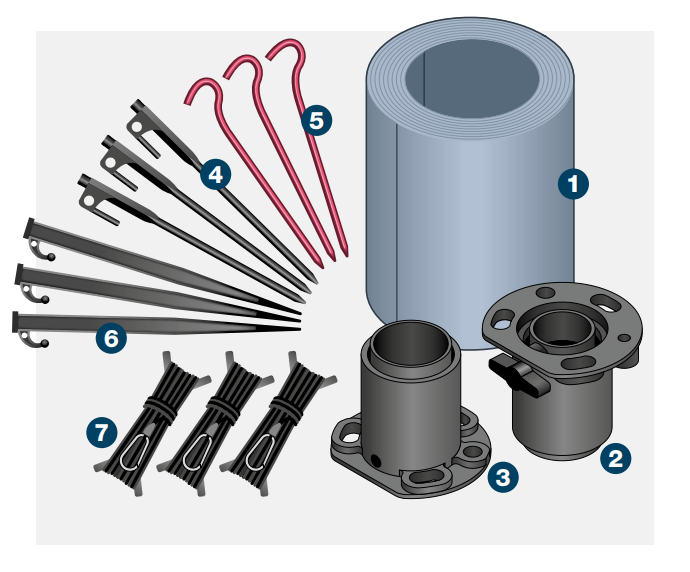

| Item | Description |
|---|---|
| 1 | 1 × 51mm (2″) diameter tube at 2m (6.6′), 3m (9.8′) or 4m (13.1′) |
| 2 | 1 × 51mm (2″) top cap |
| 3 | 1 × 51mm (2″) base cap |
| 4 | 3 × Black rock pegs |
| 5 | 3 × Red rock pegs |
| 6 | 3 × Soft ground pegs (Mil-spec version only) |
| 7 | 3 × Guy ropes |
Maximum top loads:
- 10kg (22lb) @ 2m (6.6′)
- 7kg (15lb) @ 3m (9.8′)
- 3kg (6.6lb) @ 4m (13.1′)
The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.
- Before deploying the mast please read all warnings below.
- Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
- Do not use the mast if there is visible damage.
- The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
- Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
- Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
- Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
- Do not exceed the rated top load of the mast.
- Ensure any top load is securely fastened.
- Do not allow the mast to bend.
- Ensure the deployment site is clear of any underground hazards before using pegs.
- Ensure guy ropes and pegs are secure for duration of deployment.
- Consideration must be given to the location of any cable from the top load to avoid trip hazards.
- Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
- Rolatube masts are only designed to function in the vertical axis.
- Deploy the mast with the slot facing away from any prevailing wind.
Persons 2, 3 & 4 — At guy pegs: Maintaining tension during deployment to keep mast vertical.

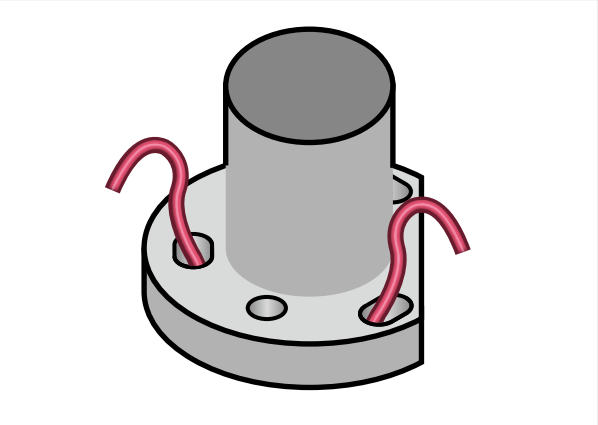

Position Base Cap
Person 1: Place the base cap where the mast is to be deployed, with the flat edge facing away from the wind, and secure with red base cap pegs.

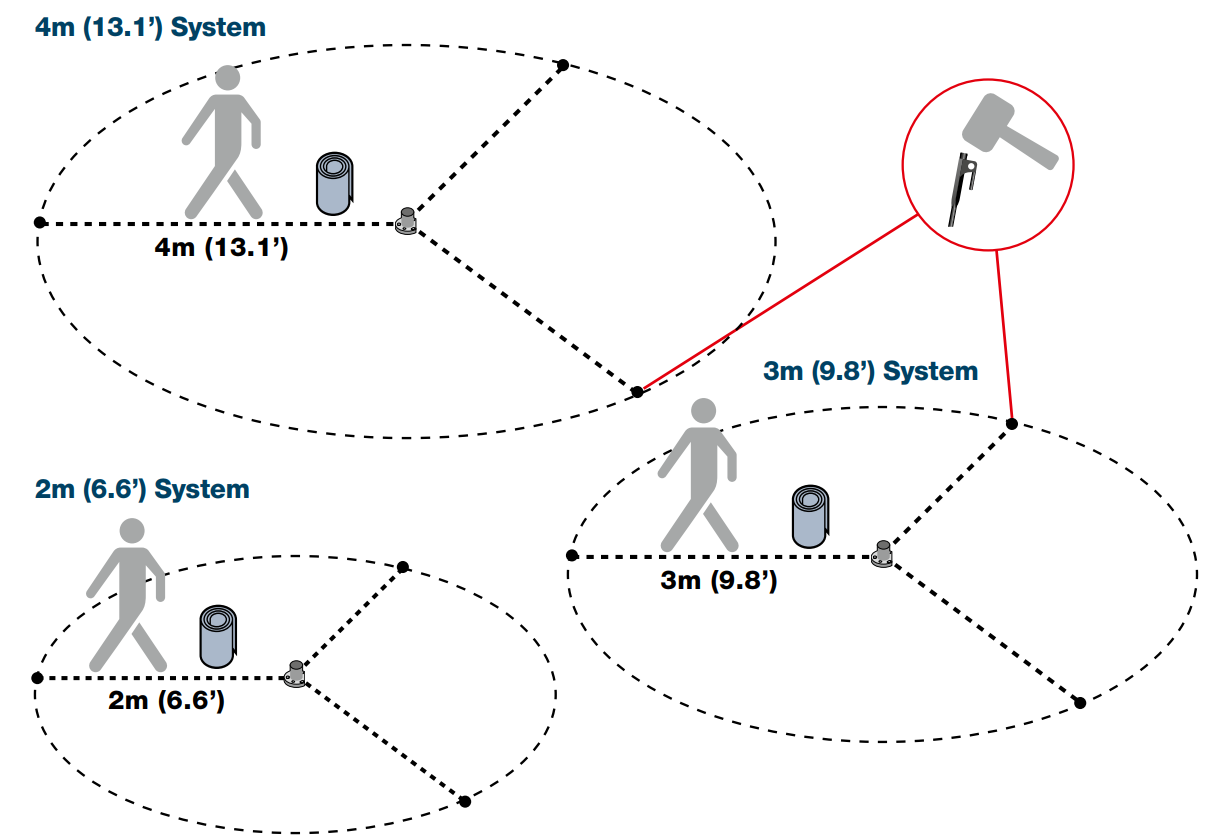

Pace Out Guy Ropes
Persons 2, 3 & 4: Using the slots in the base cap for guidance, pace out the position of the various guy ropes and insert pegs into the ground.

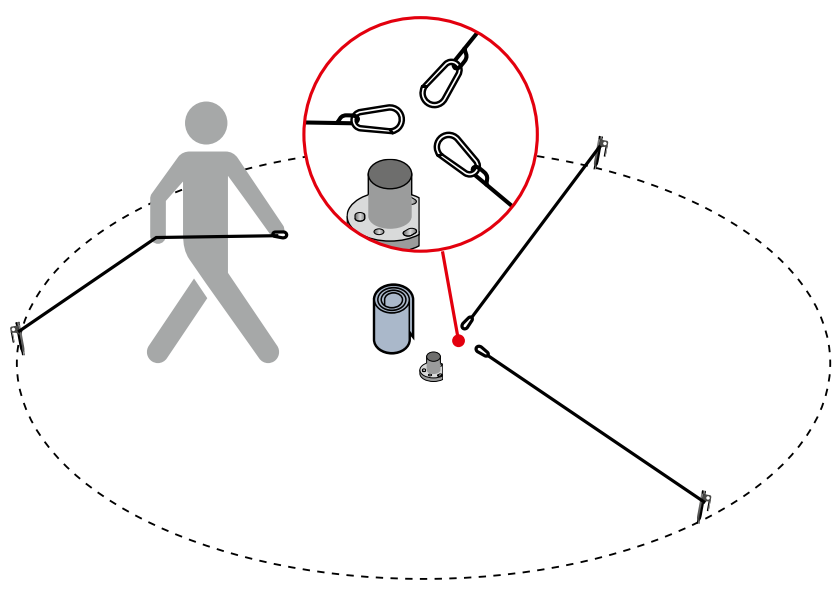

Connect Guy Ropes
Persons 2, 3 & 4: Unwind all guy ropes, connect to the pegs and lay the snap hooks next to the top collar, ready for connection as the mast is deployed. Wait at the 3 outer pegs.

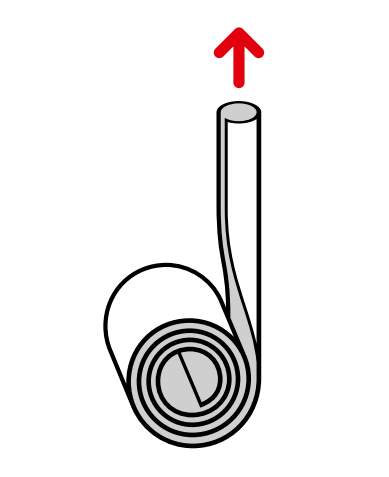

Begin Unrolling
Person 1: Place mast between feet and raise to 1m.

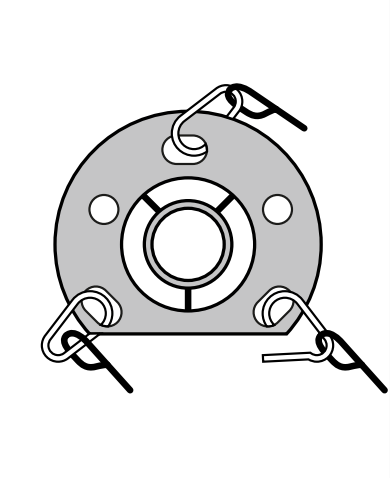

Fit Top Cap & Clip Guys
Person 1: Place top cap on the mast with flat edge aligned to slot, which is facing away from the wind, and clip on guy ropes.

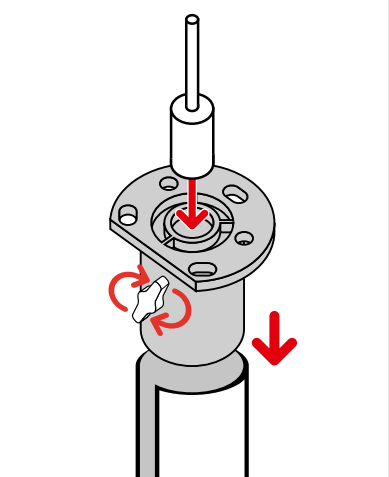

Insert Top Load
Person 1: Insert top load into top cap, using wing screw to secure.
Continue Unrolling
Person 1: Continue to unroll the mast vertically whilst Persons 2, 3 & 4 maintain light tension on the guy ropes to keep the mast vertical.

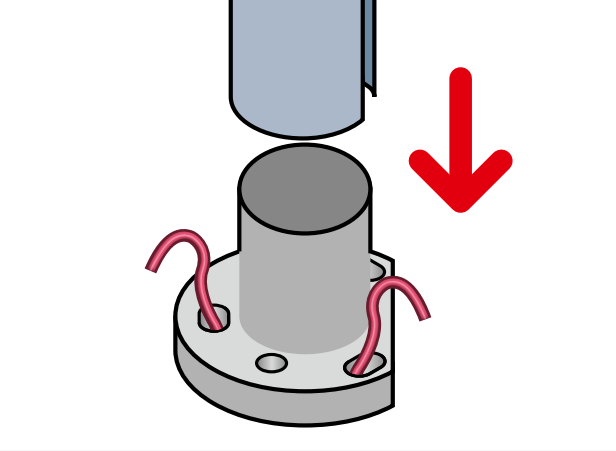

Place in Base Cap
Person 1: When the mast is fully unrolled, ensuring the mast is supported by Persons 2, 3 & 4 via the guy ropes, carefully lift it from the bottom to place it in the base cap, aligning the open slot with the flat edge.
Secure Guy Ropes
Persons 2, 3 & 4: Tighten and secure guy ropes to maintain stability. Do not overtighten.
+44 (0)1590 688019
enquiries@rolatube.com
RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

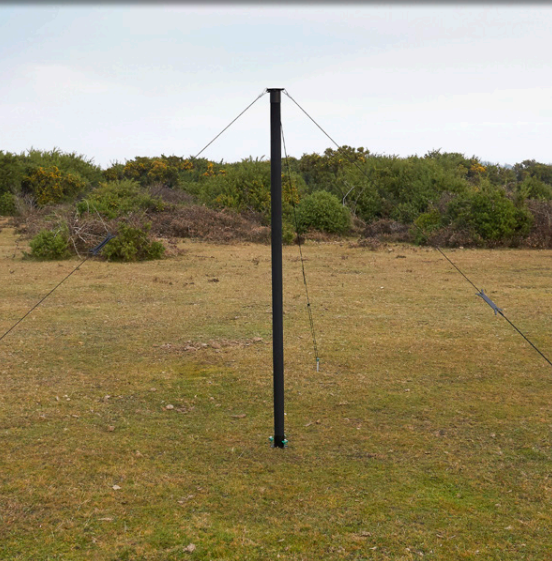

System 50: Single Tube Mast
2m, 3m & 4m variants — 51mm diameter
| System Name | System 50 2m Single Tube Mast |
| System Part Number |
Multicam: 950-202000-1-1 Black: 950-202000-3-1 |
| Deployed Height | 2m (6.6′) |
| Deployed Tube Diameter | 51mm (2″) |
| Maximum Top Load1 | 10kg (22lb) |
| System Weight* | 2kg (4.4lb) |
| Packed Dimensions | 170 × 250 × 180mm (6.6″ × 9.8″ × 7″) |
| System Name | System 50 3m Single Tube Mast |
| System Part Number |
Multicam: 950-203000-1-1 Black: 950-203000-3-1 |
| Deployed Height | 3m (9.8′) |
| Deployed Tube Diameter | 51mm (2″) |
| Maximum Top Load1 | 7kg (15.4lb) |
| System Weight* | 2.4kg (5.3lb) |
| Packed Dimensions | 170 × 250 × 180mm (6.6″ × 9.8″ × 7″) |
| System Name | System 50 4m Single Tube Mast |
| System Part Number |
Multicam: 950-204000-1-1 Black: 950-204000-3-1 |
| Deployed Height | 4m (13.1′) |
| Deployed Tube Diameter | 51mm (2″) |
| Maximum Top Load1 | 3kg (6.6lb) |
| System Weight* | 2.9kg (6.4lb) |
| Packed Dimensions | 170 × 250 × 180mm (6.6″ × 9.8″ × 7″) |
| Construction & Finish | Mast Body: PP-Glass Fibre composite Cover: Nylon cordura |
| Environmental | Waterproof & dustproof. UV resistant. Rated to 100kph (62mph) wind speed2. Complies with the relevant aspects of MIL-STD-810G |
1 Maximum weight only. Sail area should be discussed with Rolatube technical representative.
2 Bare mast only, correctly deployed. Integrator should discuss wind loadings of top load with Rolatube representative.
System
| System | Part Number | NSN |
|---|---|---|
| System 50 2m Mast, Multicam | 950-202000-1-1 | 5985-99-567-8138 |
| System 50 2m Mast, Black | 950-202000-3-1 | 5985-99-927-3240 |
Components
| Component | Part Number | NSN | Qty |
|---|---|---|---|
| 2m 51mm tube multicam | 900-202000-1-0 | 5985-99-841-3887 | 1 |
| 2m 51mm tube black | 900-202000-3-0 | 5985-99-702-8473 | 1 |
| 51mm Top cap | 800-001007 | 5985-99-217-2121 | 1 |
| 51mm Base cap | 800-001004 | 5985-99-219-0841 | 1 |
| Steel Ground Stake 30cm | 207-002004 | 4030-99-157-2404 | 3 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Soft Ground Peg | 207-002005 | 4030-99-155-8599 | 3 |
| Set of 3 × 3.5m (11.5′) Guy ropes (grey tabs) | 207-004122 | 4010-99-371-3397 | 1 |
| Mast Bag | 502-003062 | 8105-99-753-0838 | 1 |
System
| System | Part Number | NSN |
|---|---|---|
| System 50 3m Mast, Multicam | 950-203000-1-1 | 5985-99-668-0110 |
| System 50 3m Mast, Black | 950-203000-3-1 | 5985-99-507-5261 |
Components
| Component | Part Number | NSN | Qty |
|---|---|---|---|
| 3m 51mm tube multicam | 900-203000-1-0 | 5985-99-404-9480 | 1 |
| 3m 51mm tube black | 900-203000-3-0 | 5985-99-981-9696 | 1 |
| 51mm Top cap | 800-001007 | 5985-99-217-2121 | 1 |
| 51mm Base cap | 800-001004 | 5985-99-219-0841 | 1 |
| Steel Ground Stake 30cm | 207-002004 | 4030-99-157-2404 | 3 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Soft Ground Peg | 207-002005 | 4030-99-155-8599 | 3 |
| Set of 3 × 5.5m (18′) Guy ropes (grey tabs) | 207-004004 | 4010-99-328-5139 | 1 |
| Mast Bag | 502-003062 | 8105-99-753-0838 | 1 |
System
| System | Part Number | NSN |
|---|---|---|
| System 50 4m Mast, Multicam | 950-204000-1-1 | 5985-99-376-2877 |
| System 50 4m Mast, Black | 950-204000-3-1 | 5985-99-671-2663 |
Components
| Component | Part Number | NSN | Qty |
|---|---|---|---|
| 4m 51mm tube multicam | 900-204000-1-0 | 5985-99-156-7086 | 1 |
| 4m 51mm tube black | 900-204000-3-0 | 5985-99-671-2669 | 1 |
| 51mm Top cap | 800-001007 | 5985-99-217-2121 | 1 |
| 51mm Base cap | 800-001004 | 5985-99-219-0841 | 1 |
| Steel Ground Stake 30cm | 207-002004 | 4030-99-157-2404 | 3 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Soft Ground Peg | 207-002005 | 4030-99-155-8599 | 3 |
| Set of 3 × 7.5m (24.6′) Guy ropes (brown tabs) | 207-004101 | 4010-99-274-4818 | 1 |
| Mast Bag | 502-003062 | 8105-99-753-0838 | 1 |
