HF Antenna Kit

HF Antenna Kit — Rolatube Data Sheet & User Guide
User Guide
Data Sheet
System Components

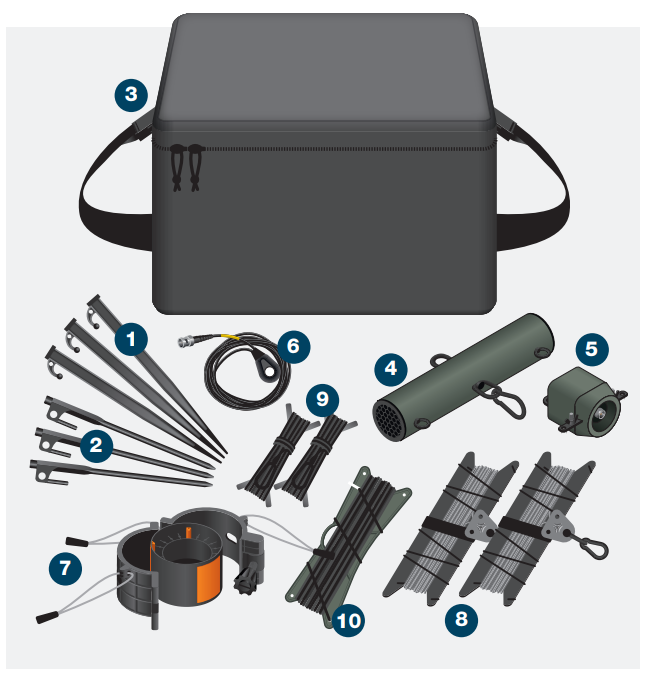

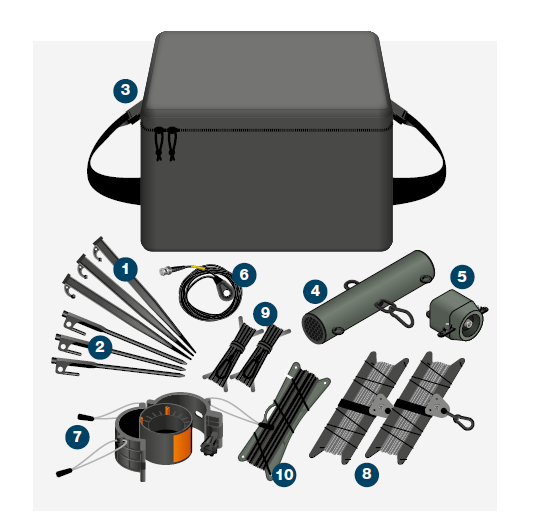

HF Antenna Kit components — 10 items with numbered callouts
ItemDescription
13 × Black hard ground pegs
23 × Soft ground pegs
31 × System bag
41 × Resistor tube
51 × 150W Balun
61 × Radio connection cable (15.24m) (50′)
71 × Secondary Cuff
82 × Dipole antenna legs
92 × Dipole guy rope extensions
101 × Hoist rope
This is an ancillary kit — it does not include a mast. Compatible with System 75 5m Single Tube Mast, System IAM 7m, and System 100. Refer to the individual mast user guide for mast deployment.

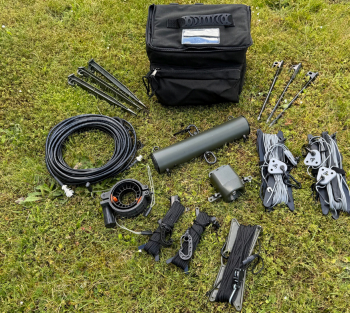

Complete HF Antenna Kit laid out
Safety Instructions

The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.

  1. Before deploying the mast please read all warnings below.
  2. Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
  3. Do not use the mast if there is visible damage.
  4. The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
  5. Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
Warnings
  1. Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
  2. Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
  3. Do not exceed the rated top load of the mast.
  4. Ensure any top load is securely fastened.
  5. Do not allow the mast to bend.
  6. Ensure the deployment site is clear of any underground hazards before using pegs.
  7. Ensure guy ropes and pegs are secure for duration of deployment.
  8. Consideration must be given to the location of any cable from the top load to avoid trip hazards.
  9. Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
  10. Rolatube masts are only designed to function in the vertical axis.
  11. Deploy the mast with the slot facing away from any prevailing wind.
Deployment Instructions
During mast deployment, attach the hoist rope using one of the following methods before continuing mast deployment as per the mast user guide.
1

Option A: Top Cap Clip

During the mast deployment, fit the clip to the top cap and feed the antenna hoist rope through the clip on the top cap. Secure the hoist rope to prevent it being raised with the mast.

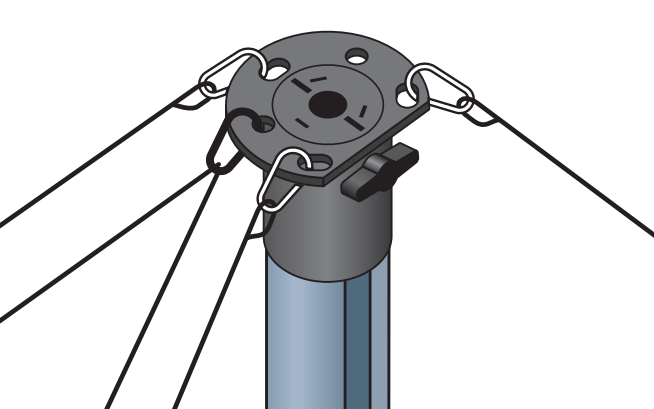

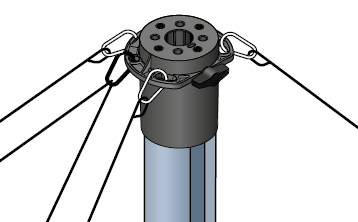

Top cap with clip and hoist rope fitted
OR
2

Option B: Secondary Cuff

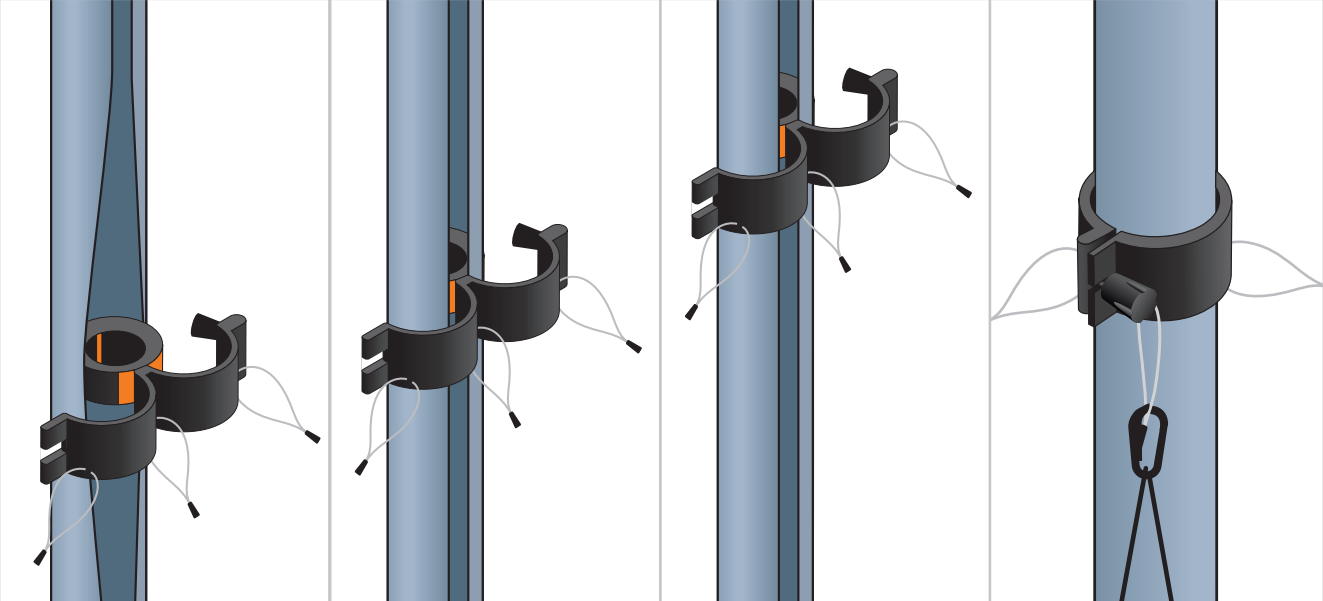

Fit the secondary cuff to the mast at the desired height and secure in place using the thumb screw. Attach the clip to the lanyard. Feed the hoist rope through the clip on the secondary cuff.

Secondary cuff fitting sequence — four views showing attachment to mast

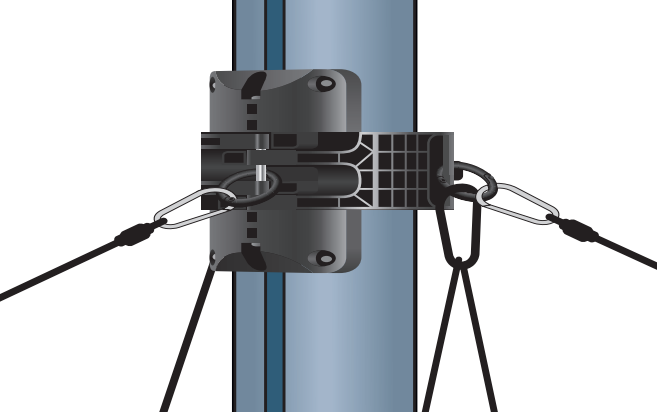

For System 100 deployment: While fitting a slot locker cuff, attach the clip to one of the rings. Feed the hoist rope through the clip on the slot locker cuff.
Slot locker cuff for System 100 with clip attached
3

Continue Mast Deployment

Continue deployment of the mast as per the mast user guide.

HF Antenna Assembly
4

Connect Balun to Resistor Tube

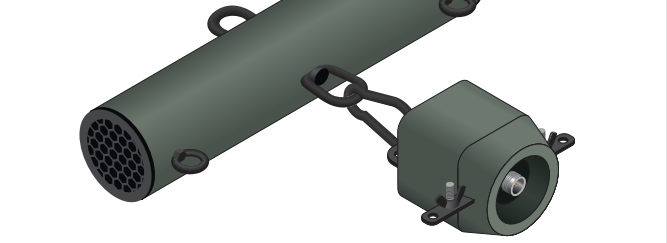

Connect the balun to the resistor tube using the snap hook.

Balun connected to resistor tube via snap hook
5

Connect Hoist Rope & Dipoles

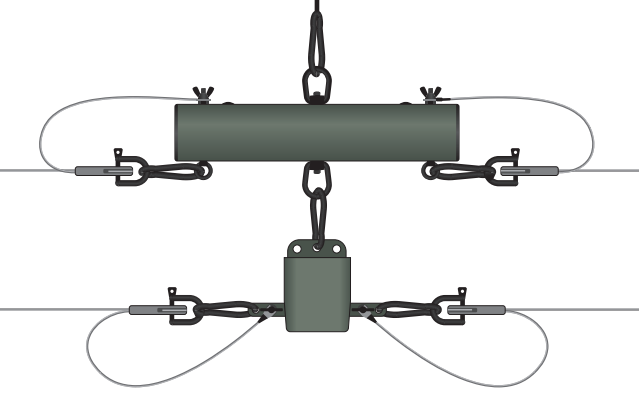

Connect the hoist rope to the top of the resistor tube using the snap hook. Unroll the dipole antenna legs and connect to the resistor tube and balun. Ensure all four strain relief snap hooks are correctly fitted.

Hoist rope and dipole antenna legs connected to assembly
6

Connect Radio Cable

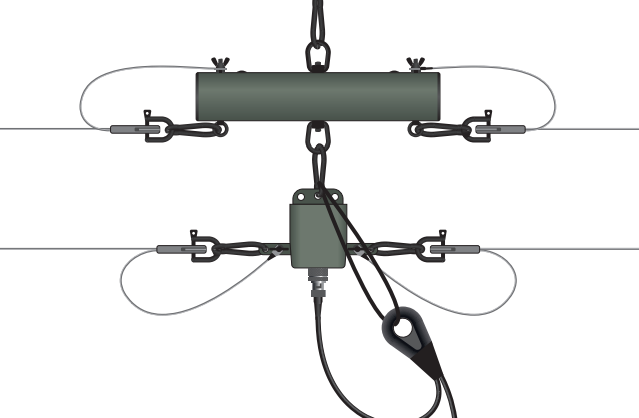

Connect the radio cable to the balun and ensure its strain relief cable is attached to the snap hook on the top of the balun.

Radio cable connected to balun with strain relief attached
7

Raise Antenna

Raise the antenna assembly using the hoist rope to the desired height. Secure the hoist rope to the base cap or ground using a peg.

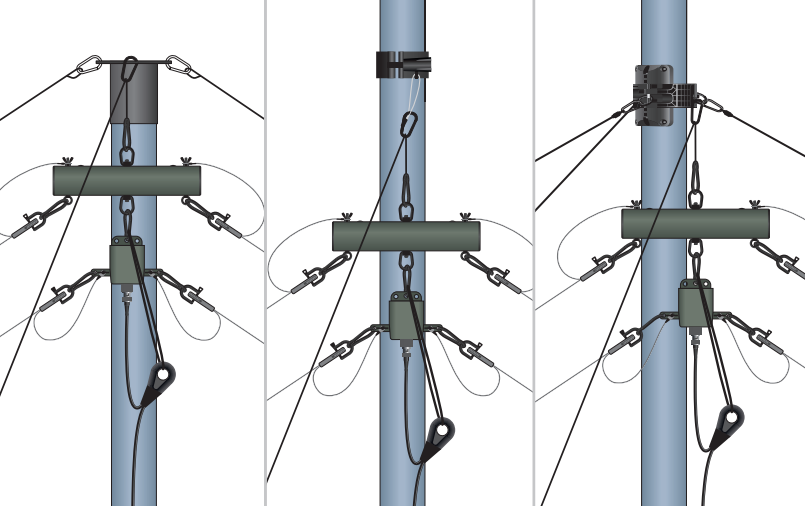

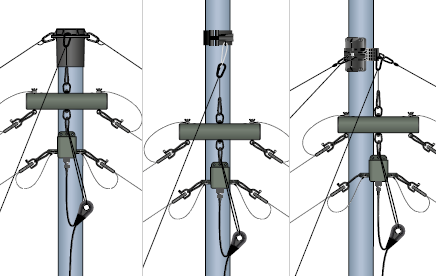

Antenna raised on mast — three views showing top cap, secondary cuff and slot locker mounting options
8

Secure Dipoles

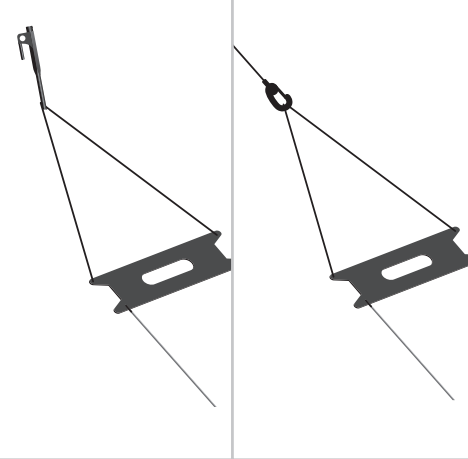

Use the pegs to secure the dipoles in position. If required, attach the extension guy ropes to the dipoles and peg and tension in the usual way.

Dipole end plates secured with ground pegs — two views
Support

+44 (0)1590 688019

enquiries@rolatube.com

RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

ISO 9001 • CERT 571669

HF Antenna Kit

Ancillary HF Antenna for Rolatube Mast Systems

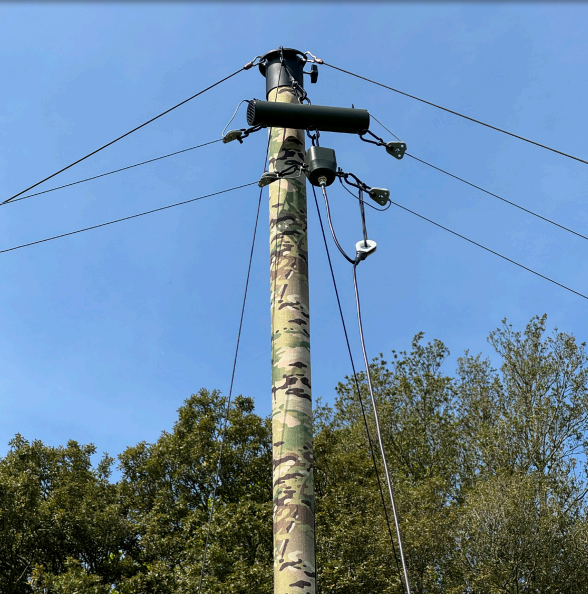

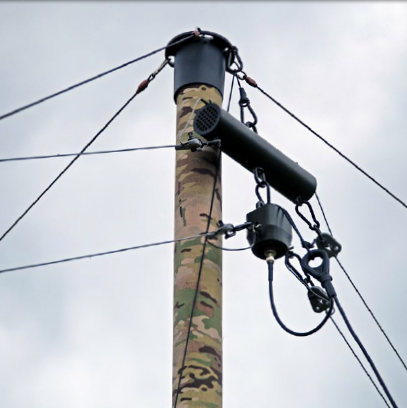

HF Antenna Kit deployed on multicam mast
Antenna Specifications
DescriptionHorizontally Polarized Folded Dipole
Frequency Range1.8 – 30 MHz
Power Rating150W
VSWR1.5 : 1 Maximum
Impedance50 Ohms nominal
Radiation PatternOmnidirectional
RF ConnectorBNC male to N Type male
RF CoaxialRG8X 15.24m (50′ nominal)
System Weight4.7kg (10.4lb)
Deployed WidthUp to 16.76m (55′ nominal)
Deployed HeightUp to 10m (32′ 9″ nominal)
Antenna Weight13.0kg (6.6lb)
EnvironmentalComplies with the relevant aspects of MIL-STD-810G
MIL-STD-810G 1.8 – 30 MHz 150W
Compatibility

System 75 5m Single Tube Mast1
System IAM 7m
System 100

1 The maximum top load of the mast must not be exceeded. The end user or system integrator is responsible for deployment and ensuring that the final system is fit for purpose with regard to wind loadings on all equipment deployed on the mast. Refer to the individual product data sheets for more information or consult with the Rolatube representative.
