System Components

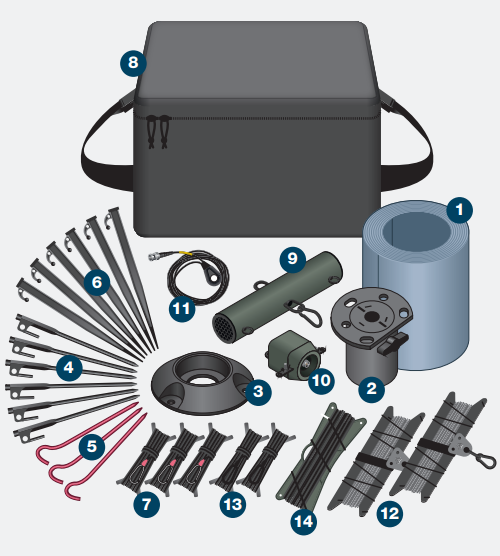

System 75 HF Kit components — 14 items with numbered callouts
ItemDescription
11 × 76mm (3″) diameter tube at 5m (16.4′)
21 × 76mm (3″) top cap
31 × 76mm (3″) low profile base cap
46 × Black hard ground pegs
53 × Red hard ground pegs
66 × Soft ground pegs
73 × Mast guy ropes
81 × System bag
91 × Resistor tube
101 × 150W Balun
111 × 50′ Radio connection cable
122 × Dipole antenna legs
132 × Dipole guy rope extensions
141 × Hoist rope

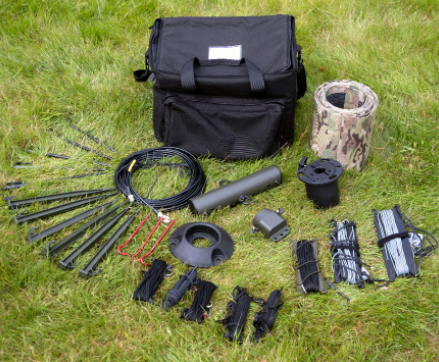

Complete HF Kit laid out — all components
Safety Instructions

The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.

  1. Before deploying the mast please read all warnings below.
  2. Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
  3. Do not use the mast if there is visible damage.
  4. The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
  5. Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
Warnings
  1. Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
  2. Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
  3. Do not exceed the rated top load of the mast.
  4. Ensure any top load is securely fastened.
  5. Do not allow the mast to bend.
  6. Ensure the deployment site is clear of any underground hazards before using pegs.
  7. Ensure guy ropes and pegs are secure for duration of deployment.
  8. Consideration must be given to the location of any cable from the top load to avoid trip hazards.
  9. Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
  10. Rolatube masts are only designed to function in the vertical axis.
  11. Deploy the mast with the slot facing away from any prevailing wind.
Mast Deployment (4 Person)
Person 1 — At base of mast: Deployment lead, responsible for deploying mast from the roll.
Persons 2, 3 & 4 — At guy pegs: Maintaining tension during deployment to keep mast vertical.
Phase 1 — Mast Deployment
1

Position Base Cap

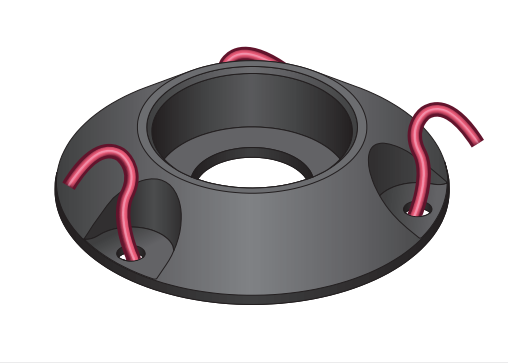

Person 1: Place the base cap where the mast is to be deployed, with one peg hole facing into the wind. Secure with the red hard ground pegs.

Low profile base cap secured with red pegs
2

Pace Out Guy Ropes

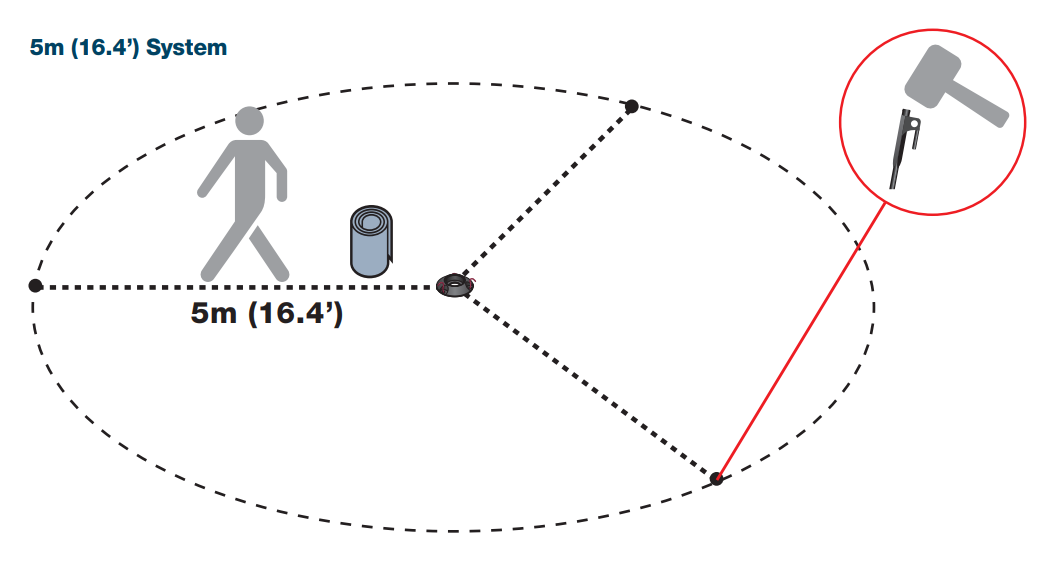

Persons 2, 3 & 4: Using the pegs in the base cap for guidance, pace out the position of the various guy ropes and insert pegs into the ground.

Guy rope pacing layout for 5m system
3

Connect Guy Ropes

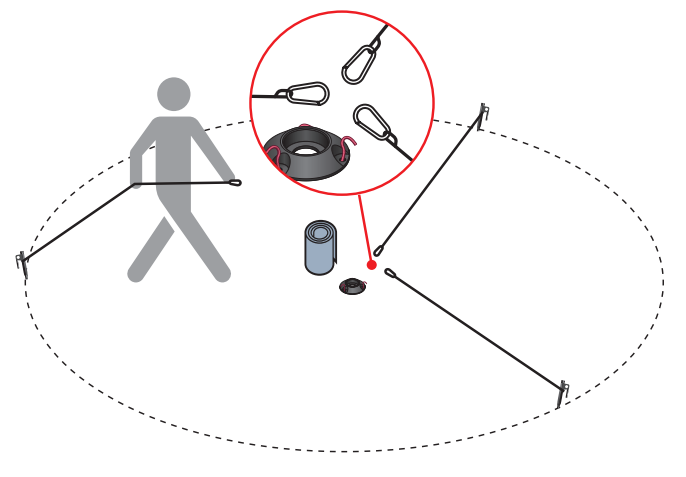

Persons 2, 3 & 4: Unwind the mast guy ropes, connect to the pegs and lay the snap hooks next to the top cap, ready for connection as the mast is deployed. Wait at the 3 outer pegs.

Guy ropes connected to pegs with snap hooks laid out
4

Attach Top Cap, Guy Ropes & Hoist Rope

Person 1: Place mast between feet and attach the top cap with the flat edge aligned with the open slot in the mast, which is facing away from the wind. Connect the mast guy ropes and feed the antenna hoist rope through the clip on the top cap. Secure the hoist rope to prevent it being raised with the mast. Continue to unroll the mast vertically whilst Persons 2, 3 & 4 maintain light tension on the guy ropes to keep the mast vertical.

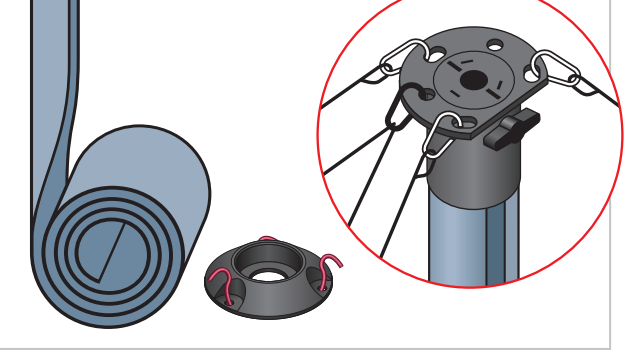

Rolled tube with top cap detail showing hoist rope clip
5

Slide into Base Cap

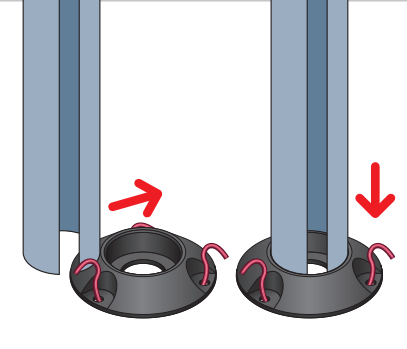

Person 1: When the mast is fully unrolled, slide it carefully into the base cap, whilst keeping it vertical and ensuring the slot is still facing away from the wind. Persons 2, 3 & 4: Maintain light tension on the mast guy ropes.

Mast being slid into low profile base cap — two views
6

Secure Guy Ropes

Persons 2, 3 & 4: Tighten and secure the mast guy ropes. Do not overtighten.

Antenna Deployment
Phase 2 — HF Antenna Assembly & Raising
7

Connect Balun to Resistor Tube

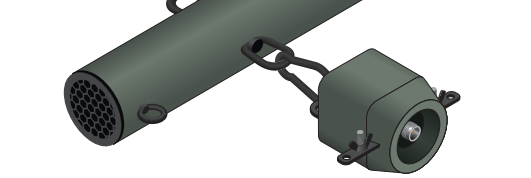

Connect the balun to the resistor tube using the snap hook.

Balun connected to resistor tube via snap hook
8

Connect Antenna Dipoles

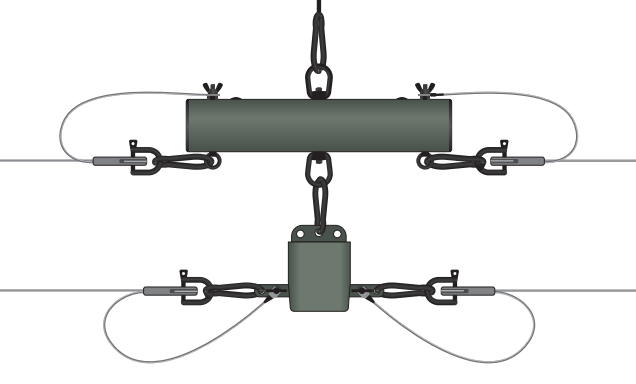

Unroll the antenna dipoles. Connect the antenna dipoles to the resistor tube and balun. Ensure all four strain relief snap hooks are correctly positioned.

Antenna dipoles connected to resistor tube and balun assembly
9

Connect Hoist Rope & Radio Cable

Connect the hoist rope to the top of the resistor tube using the snap hook. Connect the radio cable to the balun and ensure its strain relief cable is attached to the snap hook on the tip of the balun.

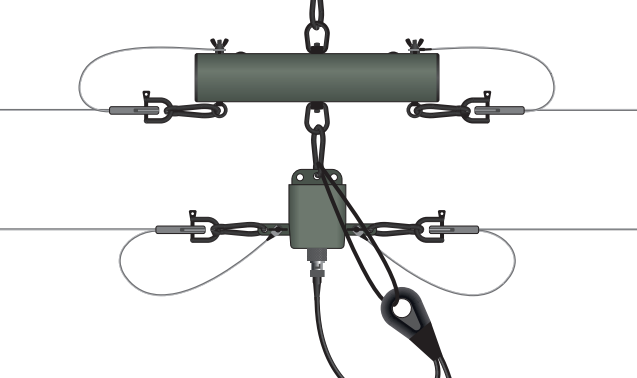

Hoist rope and radio cable connected to antenna assembly
10

Raise Antenna

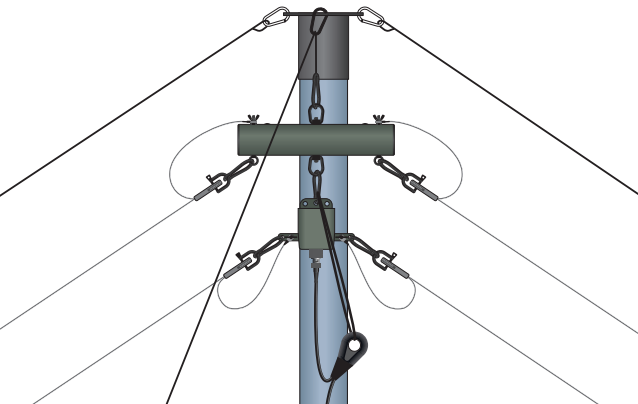

Raise the antenna assembly using the hoist rope to the desired height. Secure the hoist rope to the base cap or ground using a peg.

Antenna assembly raised to top of mast
11

Secure Dipoles

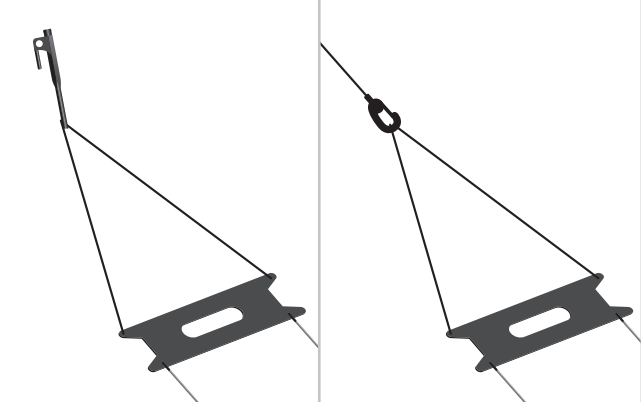

Use the pegs to secure the dipoles in position. If required, attach the extension guy ropes to the dipoles and peg and tension in the usual way.

Dipole end plates secured with ground pegs
RECOVERY: Recovery is a logical reverse procedure of deployment. Lower the Antenna using the hoist rope. Person 1 lifts the mast from the base cap while Persons 2, 3 & 4 provide support with the guy ropes. Person 1 rolls the bottom edge to enable the mast to be rolled down whilst keeping it vertical. When the top cap and top load can be reached, Person 1 removes them whilst Persons 2, 3 & 4 continue to support the mast with the guy ropes. DO NOT allow the mast to fall to the ground or damage to mast and top load may occur.
Support

+44 (0)1590 688019

enquiries@rolatube.com

RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

ISO 9001 • CERT 571669

System 75: HF Kit

5m Single Tube Mast + HF Antenna

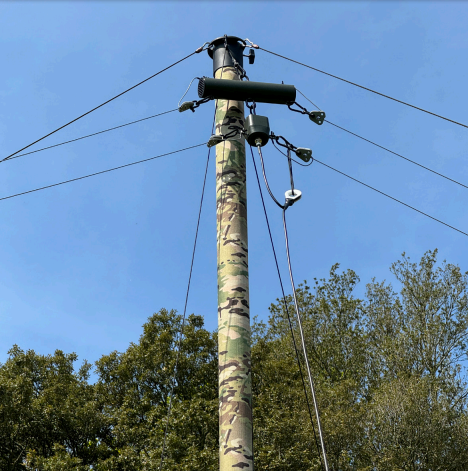

System 75 HF Kit deployed — mast with HF antenna
System
System Weight9.5kg (21lb)
Mast Specifications
DescriptionSystem 75 Single Tube Mast
Deployed Height5m (16.4′)
Deployed Mast Diameter76mm (3″)
Colour OptionsMulticam, Black
ConstructionBody: PP-Glass Fibre composite
Cover: Nylon cordura
EnvironmentalWater & dust proof. UV resistant.
Rated to 100kph (62mph) wind speed1.
Complies with the relevant aspects of MIL-STD-810G
MIL-STD-810G
Antenna Specifications
DescriptionHorizontally Polarized Folded Dipole
Frequency Range1.8 – 30 MHz
Power Rating150W
VSWR1.5 : 1 Maximum
Impedance50 Ohms nominal
Radiation PatternOmnidirectional
RF ConnectorBNC male to N Type male
RF CoaxialRG8X 15.24m (50′ nominal)
Deployed WidthUp to 16.76m (55′ nominal)
Deployed HeightUp to 5m (16.4′ nominal)
EnvironmentalComplies with the relevant aspects of MIL-STD-810G
MIL-STD-810G 1.8 – 30 MHz 150W
1 Maximum wind loading is based on the bare mast correctly deployed and with rock pegs firmly positioned. End user or system integrator must take responsibility for deployment and ensuring that the final system is fit for purpose with regard to wind loadings once top load or other equipment is mounted.
