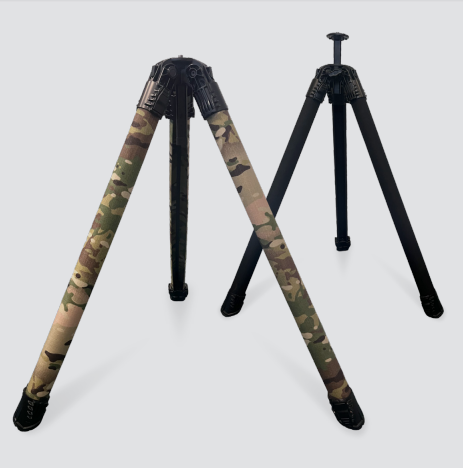

System 30: Compact Tactical Tripod (CTT)

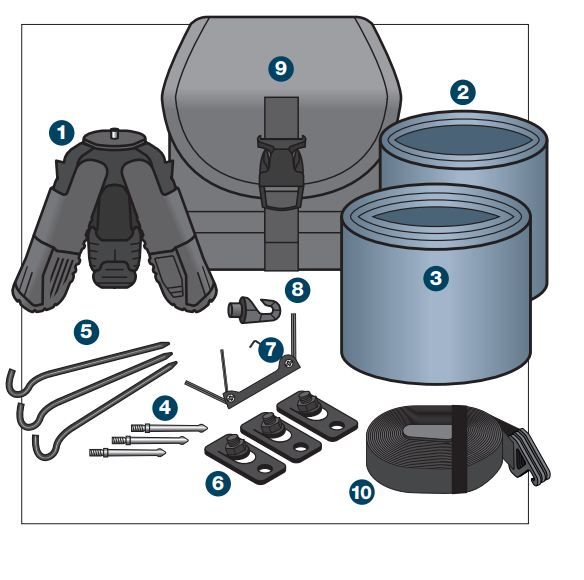

Components

Item	Description
1	Stubby tripod
2	3 × 650mm legs
3	3 × 1250mm legs
4	3 × 65mm foot spikes
5	3 × Pegs
6	3 × Peg plates
7	1 × Allen Key set
8	1 × Hook
9	1 × Bag
10	Optional Accessory. Leg Tie (Separate User Guide provided)*

*Using the Leg Tie enables the CTT to take loads over 40kg. Contact RTL for technical guidance.

Load ratings:

No legs (stubby configuration): 40kg (88lb)
650mm and 1250mm legs @ 25° leg angle: 40kg (88lb)
650mm legs @ 45° leg angle: 20kg (44lb)

Safety Instructions

The systems are rated to the loads stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.

Before deploying the tripod please read all warnings below.
Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
Do not use the tripod if there is visible damage.
The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
Rolatube tripod systems are rated for wind speeds of up to 100kph (62 mph) when pegged to the ground. The maximum wind rating is based on the unloaded tripod correctly deployed with pegs or foot spikes. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.

Warnings

Top load limits are subject to the user assessing the ground conditions. If the feet slip then these safe load limits are significantly compromised and the pegs or spikes provided, or the Leg Ties, should be used.
Ensure the deployment site is as flat as possible and clear of any cables or equipment that represents an electric shock hazard.
Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
Do not exceed the rated top load of the tripod.
Ensure any top load is securely fastened.
Do not allow the tripod legs to bend.
Ensure the deployment site is clear of any underground hazards before using pegs.
If used, ensure pegs are secure for duration of deployment.
Consideration must be given to the location of any cable from the top load to avoid trip hazards.
Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
Rolatube tripods are only designed to function with the top load in the vertical axis.

1. Prone / Platform Mode

Stubby configuration — no legs required. Maximum height 240mm @ 25°.

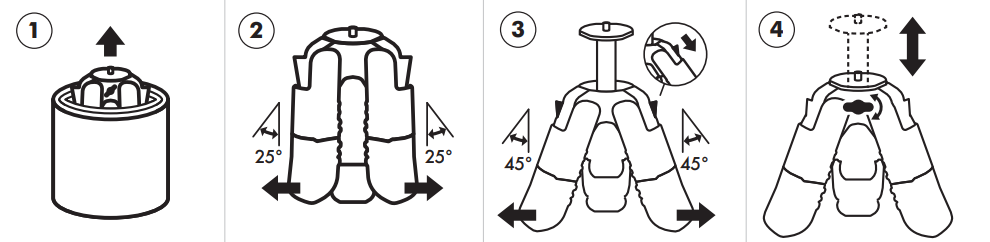

Prone/platform mode deployment — 4 steps showing stubby tripod with leg angles at 25° and 45°

Lift Head

Lift the head assembly upward out of the stubby tripod body.

Set 25° Angle

Spread the stubby legs outward to the 25° detent position.

Optional: Set 45° Angle

For a wider stance, spread legs further to the 45° position. Extend payload mount and lock.

Adjust Payload Height

Extend and rotate the payload mount to the desired height.

2. Sitting Mode

650mm legs — max height 740mm @ 25°. Load: 40kg @ 25°, 20kg @ 45°.

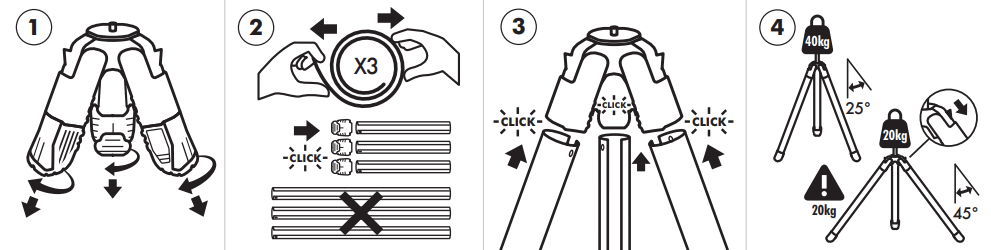

Sitting mode deployment — 650mm legs, 4 steps with 25° and 45° angle options

Open Stubby & Set Angle

Lift head, spread stubby legs to 25° or 45° detent.

Insert 650mm Legs

Click-fit all 3 × 650mm legs into the stubby leg sockets. Do not use the 1250mm legs in this mode.

Stand & Lock

Stand the tripod upright. Legs click into position.

Mount Payload

Attach payload to mount. 40kg max @ 25°, 20kg max @ 45°.

3. Standing Mode

1250mm legs — max height 1290mm @ 25°. Load: 40kg @ 25°. Not recommended at 45°.

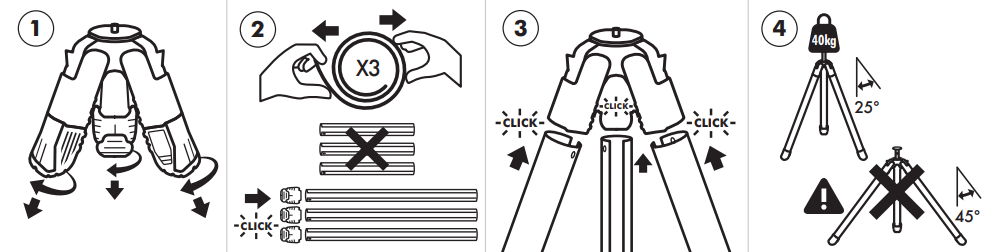

Standing mode deployment — 1250mm legs, 4 steps at 25° only

Open Stubby & Set Angle

Lift head, spread stubby legs to 25° detent.

Insert 1250mm Legs

Click-fit all 3 × 1250mm legs into the stubby leg sockets. Do not use peg plates with this mode.

Stand & Lock

Stand the tripod upright. Legs click into position.

Mount Payload

Attach payload to mount. 40kg max @ 25° only. 1250mm legs are not recommended for use at 45°.

4. Storage

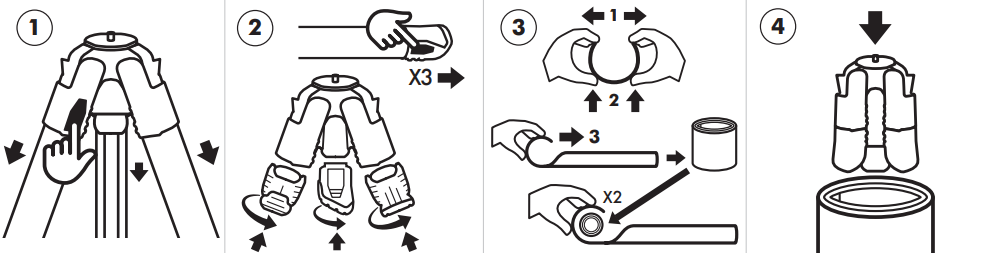

Storage instructions — fold legs, remove, roll and pack into bag

Collapse Legs

Press the release on the head and fold the stubby legs inward.

Remove Legs

Detach the extension legs (x3) from the stubby sockets.

Roll Legs

Roll each leg pair and secure. Stack rolled legs into the bag along with pegs and accessories.

Pack

Place the stubby tripod on top and close the bag.

Accessories Setup

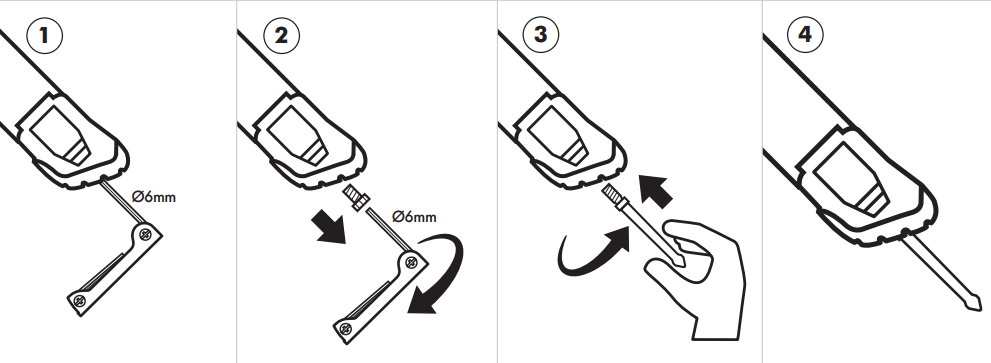

Connecting Foot Spikes

Use the 6mm allen key to loosen the existing foot bolt.

Remove the bolt using the 6mm allen key.

Insert foot spike and hand-tighten.

Spike installed. Repeat for remaining two legs.

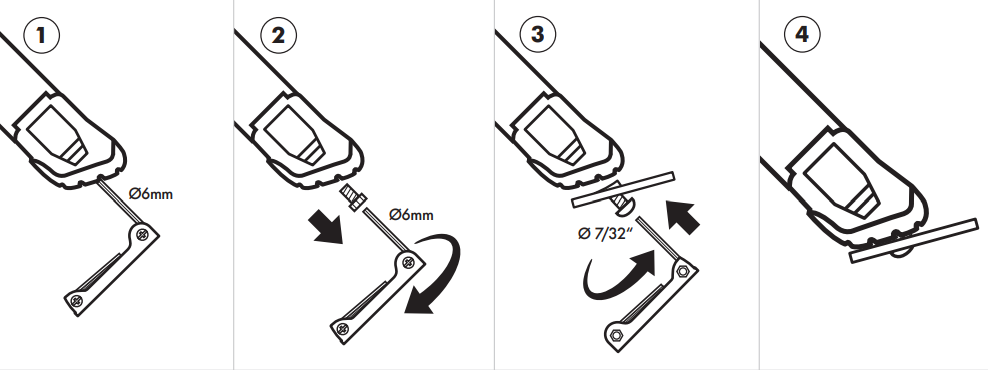

Connecting Peg Plates

Use the 6mm allen key to loosen the existing foot bolt.

Remove bolt using the 6mm allen key.

Attach peg plate using the 7/32″ allen key and tighten.

Peg plate installed. Repeat for remaining two legs.

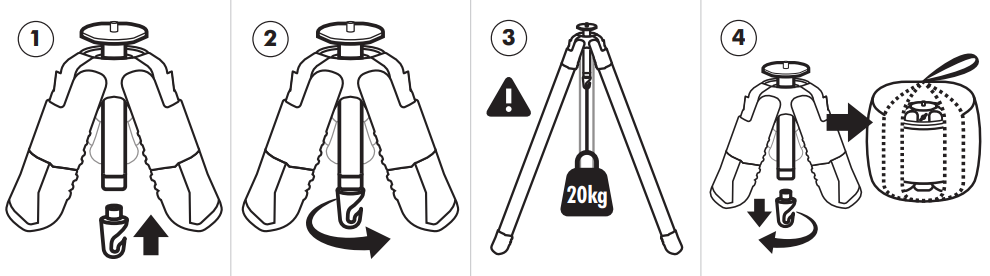

Attaching Hook

Clip hook onto the base of the tripod head.

Rotate to lock into position.

Hang load from hook. Maximum hanging load: 20kg.

To remove, unclip and stow hook in bag.
