System IAM:3.5m ‘SQUAD’

30-300MHz

System IAM 3.5m SQUAD — Rolatube Data Sheet & User Guide
User Guide
Data Sheet
System Components

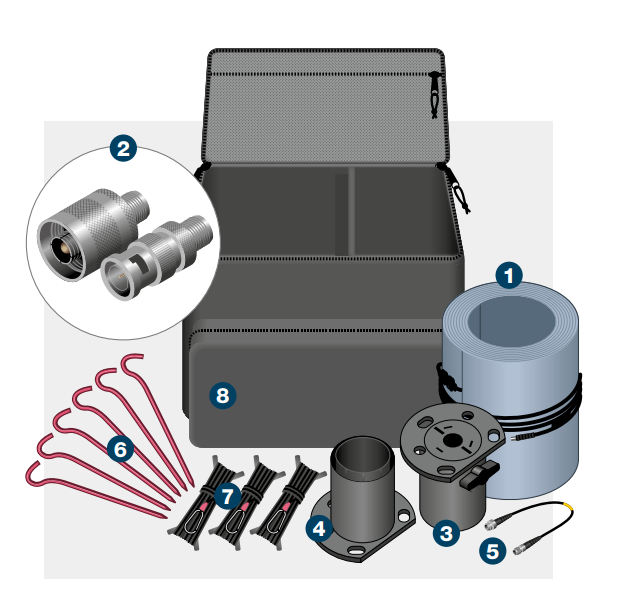

System IAM 3.5m SQUAD complete kit — all components laid out with numbered callouts
ItemDescription
11 × 3.5m 51mm (11.5′ 2″) ‘SQUAD’ Integrated Antenna Mast
21 × TNC (f) to N-Type (m) adaptor, 1 × TNC (f) to BNC (m) adaptor
31 × 51mm (2″) top cap
41 × 51mm (2″) base cap
51 × Strain relief cable
66 × Red rock pegs
73 × Guy ropes
81 × Bag
Safety Instructions

The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.

  1. Before deploying the mast please read all warnings below.
  2. Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
  3. Do not use the mast if there is visible damage.
  4. The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
  5. Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
Warnings
  1. Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
  2. Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
  3. Do not exceed the rated top load of the mast.
  4. Ensure any top load is securely fastened.
  5. Do not allow the mast to bend.
  6. Ensure the deployment site is clear of any underground hazards before using pegs.
  7. Ensure guy ropes and pegs are secure for duration of deployment.
  8. Consideration must be given to the location of any cable from the top load to avoid trip hazards.
  9. Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
  10. Rolatube masts are only designed to function in the vertical axis.
  11. Deploy the mast with the slot facing away from any prevailing wind.
Unguyed Deployment
1

Remove & Unclip

Remove rolled IAM from bag and unclip flying lead from cable clip.

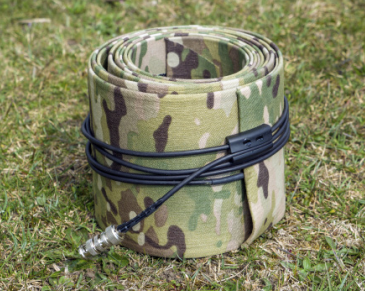

Rolled IAM in multicam finish with flying lead clipped
2

Unwind Cable & Unroll

Unwind cable then unroll the IAM.

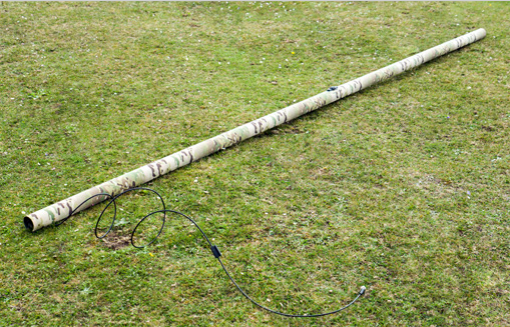

IAM unrolled on grass with cable extended
3

Connect & Lift

Connect the strain relief cable, first to the coaxial connector coming from the IAM, and then to the radio. Lift the IAM to gain height for transmission.

Optional: additional height can be gained by using a line through the rigging hole to haul over a tree branch or other structure.

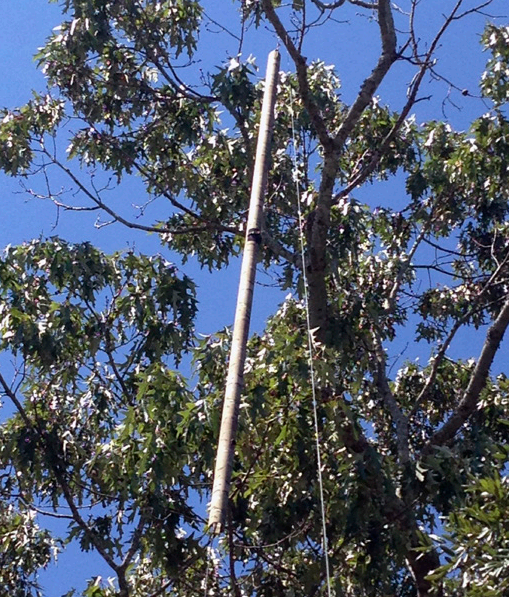

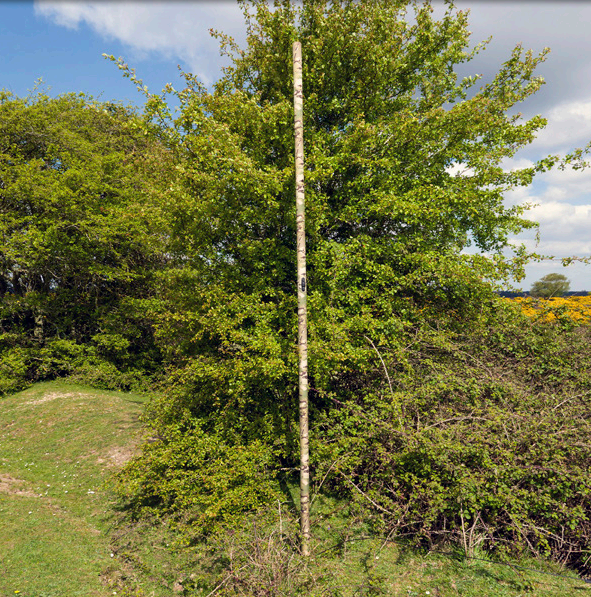

IAM lifted against tree for transmission height
4

Recovery

For recovery, after detaching radio and strain relief cable, ensure the IAM is rolled from the appropriate end, following guidelines on label.

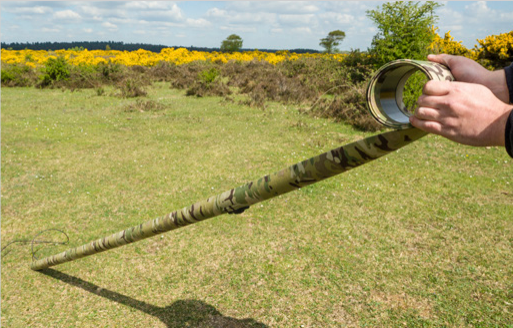

IAM being rolled from correct end for recovery
5

Stow

Wrap flying lead around rolled IAM and clip into place using cable clip.

Guyed Deployment
2 persons required for deployment
1

Position Base Cap

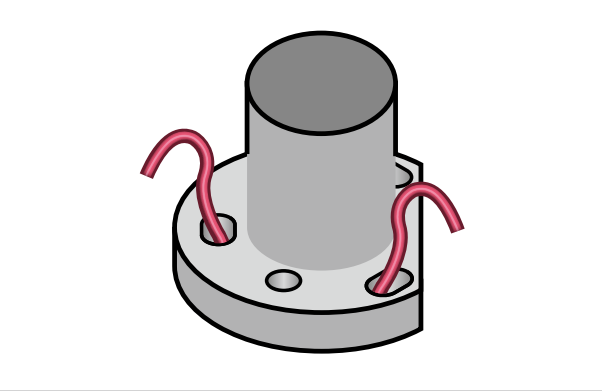

Person 1: Place the flat side of the base cap away from the wind and secure with red base cap pegs.

Base cap positioned and secured with red pegs
2

Pace Out Guy Ropes

Person 2: Using the pegs in the base cap for guidance, lay guy ropes’ snaphooks next to IAM. Pace out the 3 guy ropes to 2.5m (8.2′). Insert pegs in ground, attach guy ropes and return to IAM.

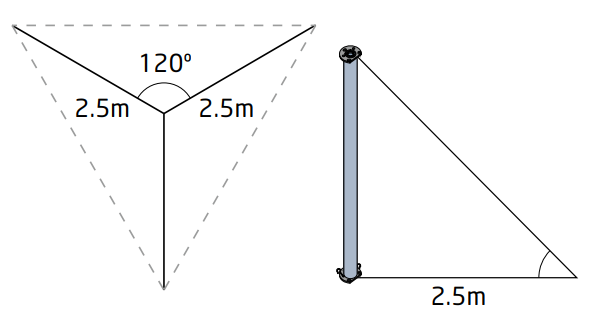

Guy rope layout — 120° spacing, 2.5m from mast
3

Unroll & Fit Top Cap

Person 1: Unroll the IAM and place the top cap on the IAM with flat edge aligned to slot, and clip on guy ropes. The trailing lead comes out of the bottom of the IAM.

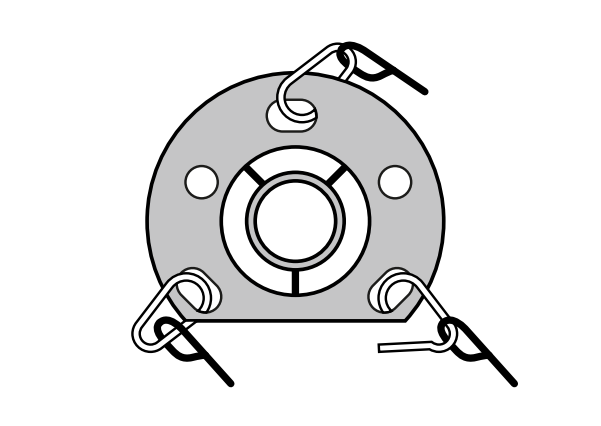

Top cap with guy rope clips attached
4

Lift into Base Cap & Secure

Person 1: Lift the IAM into the base cap and support. Person 2: Secure the 3 guy ropes to the pegs and tighten guy ropes sufficiently to maintain stability. Do not overtighten.

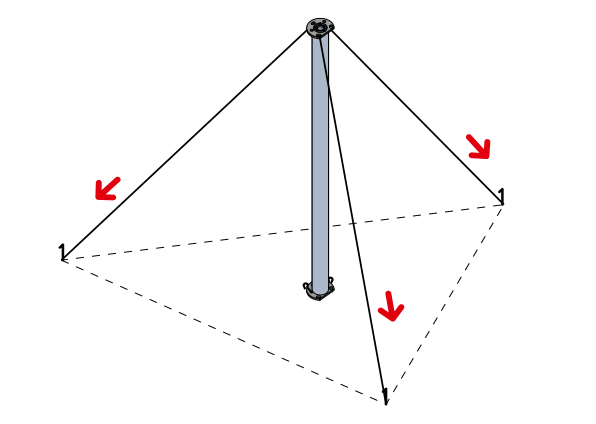

Deployed mast with guy ropes secured to pegs
5

Connect RF

Connect the strain relief cable, first to the coaxial connector coming from the IAM, and then to the radio.

RECOVERY: Person 2 loosens guy ropes whilst Person 1 lifts IAM from base cap and slowly lowers it to the ground and removes top cap. DO NOT allow the IAM to fall to the ground or damage to top load and IAM may occur. Roll the IAM from the correct end following instructions on the label.
Support

+44 (0)1590 688019

enquiries@rolatube.com

RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

ISO 9001 • CERT 571669

System IAM: 3.5m ‘SQUAD’

30–300MHz Integrated Antenna Mast

System Specifications
System Part Number Multicam: 952-203500-1-1
Black: 952-203500-3-1
Multicam Alpine*: 952-203500-6-1
Multicam Arid*: 952-203500-8-1
Frequency Range30–300MHz
Power Rating25W using standard duty cycles and voice over radio transmit protocols1
Impedance50 ohms nominal
VSWR30–50MHz <4:1
50–300MHz <3:1
Antenna FormatVertically Polarised Dipole
Radiation PatternOmnidirectional
Nominal Gain2.2 dBi
Deployed Height3.5m (11.5′)
Deployed Tube ID51mm (2″)
Packed Dimensions WxHxD170 × 250 × 180mm (6.6″ × 9.8″ × 7″)
System Weight**2.5kg (5.5lb)
RF CablePermanently fixed 2.2m (7.2′) length extending from base of mast (via strain relief clamp)
Connection TypeTNC (m)
System Contents 1 × 3.5m 51mm (11.5′ 2″) Integrated Antenna Mast
1 × Strain Relief Cable
1 × Top Cap
1 × End Cap
1 × Set of 3 Guy Ropes
6 × Red Rock Pegs
1 × TNC to N-Type (m) Adaptor
1 × TNC to BNC (m) Adaptor
1 × Black Bag
Construction & FinishMast Body: PP-glass fibre composite with integrated dipole antenna
External Finish: Nylon woven fabric cover (Cordura 500 denier) in black or MTP
EnvironmentalCompliant with the relevant sections of MIL-STD-810G
MIL-STD-810G
*MOQ of 5 applies, or 20% surcharge.
** Without pegs.
1 Stated power rating is based on continuous transmit. Higher powers may be used depending on duty cycle and transmission duration protocols. Please contact your Rolatube representative to discuss your requirements before exceeding 25W.
3.5m SQUAD RF Data (30–300MHz)

1.0 VSWR

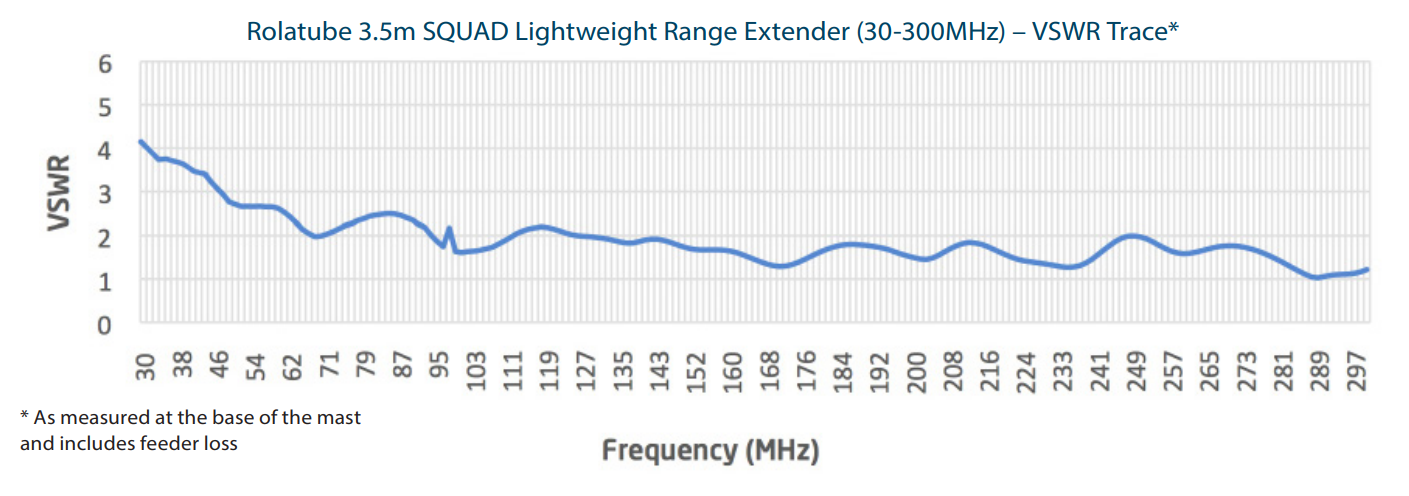

3.5m SQUAD VSWR Trace 30-300MHz
VSWR Trace (30–300MHz)

2.0 Polar Plots (Gain dB)

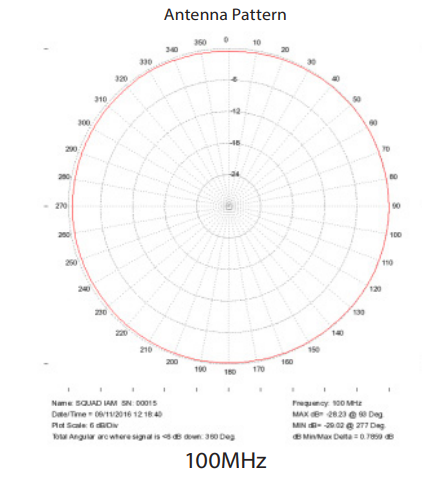

Polar plot at 100MHz
100 MHz

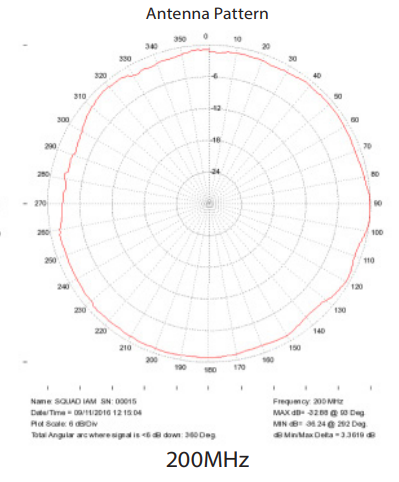

Polar plot at 200MHz
200 MHz

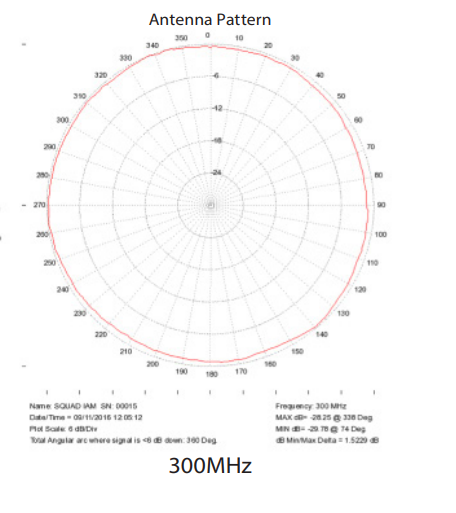

Polar plot at 300MHz
300 MHz

3.0 Swept Gain (dBi)

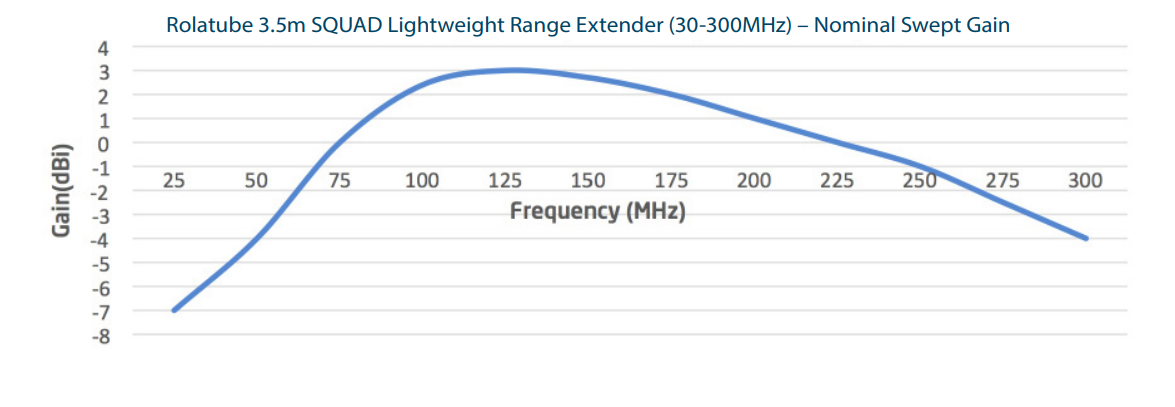

3.5m SQUAD Nominal Swept Gain 30-300MHz
Nominal Swept Gain (30–300MHz)
Product Components

System

SystemRolatube Part NumberNSN
3.5m SQUAD IAM (30-300MHz) multicam952-203500-1-15985-99-844-4259
3.5m SQUAD IAM (30-300MHz) black952-203500-3-15985-99-226-5973
3.5m SQUAD IAM (30-300MHz) multicam alpine952-203500-6-1NSN Pending
3.5m SQUAD IAM (30-300MHz) multicam arid952-203500-8-1NSN Pending

Components

ComponentRolatube Part NumberNSNQty
3.5m 51mm SQUAD IAM (30-300MHz) multicam902-203500-1-05985-99-232-39061
3.5m 51mm SQUAD IAM (30-300MHz) black902-203500-3-05985-99-371-38671
3.5m SQUAD IAM (30-300MHz) multicam alpine902-203500-6-0NSN pending1
3.5m SQUAD IAM (30-300MHz) multicam arid902-203500-8-0NSN pending1
Strain Relief Cable108-0000345975-99-564-14351
Top Cap800-0010075985-99-217-21211
Base Cap800-0010045985-99-219-08411
Set of 3 × 5.5m (18′) Guy Ropes207-0040064010-99-155-52921
Red Rock Peg207-0020084030-99-847-52336
TNC (f) – N-Type (m) Cable Adaptor404-0000445940-99-155-82231
TNC (f) – BNC (m) Cable Adaptor404-0000435940-99-732-54841
Bag502-0030628105-99-753-08381
Optional Accessories
AccessoryRolatube Part NumberNSN
3.5m IAM Mount for System 75800-0062005985-99-371-3902
3.5m IAM Mount for System 100800-0062105985-99-680-0511
