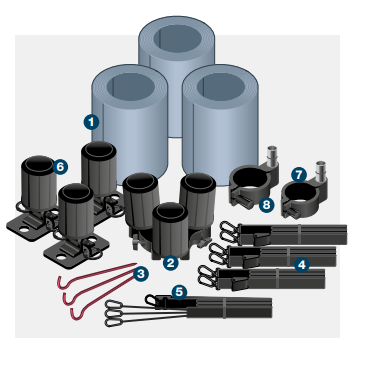

Components Overview
| Item | Description |
|---|---|
| 1 | 3 × 51mm (2″) diameter tubes at 1m (3.3′), 2m (6.6′) or 3m (9.8′) |
| 2 | Tripod Head Mount with leg locking and spigot locking screws |
| 3 | 3 × Red Rock Pegs |
| 4 | 3 × Adjustable Leg Ties |
| 5 | Central Pull Down |
| 6 | 3 × Feet |
| 7 | Optional Adaptor to support single tube mast system |
| 8 | Optional Adaptor to support double tube mast system |
Safety Instructions
The systems are rated to the loads stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.
- Before deploying the tripod please read all warnings below.
- Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
- Do not use the tripod if there is visible damage.
- The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
- Rolatube tripod systems are rated for wind speeds of up to 100kph (62 mph). The maximum wind rating is based on the unloaded tripod correctly deployed, pegged, stabilised with leg ties and secured with the weighted central pull down. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
Warnings
- Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
- Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
- Do not exceed the rated top load of the tripod.
- Ensure any top load is securely fastened.
- Do not allow the tripod legs to bend.
- Ensure the deployment site is clear of any underground hazards before using pegs.
- Ensure pegs are secure for duration of deployment.
- Consideration must be given to the location of any cable from the top load to avoid trip hazards.
- Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
- Rolatube tripods are only designed to function with the top load in the vertical axis.
Deployment Instructions
1

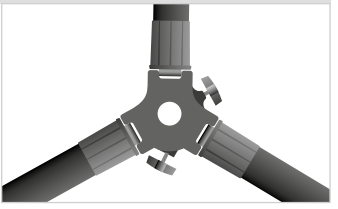

Unroll Legs & Insert into Head Mount
Unroll the three legs and insert into the head mount with the slots facing inwards.
2

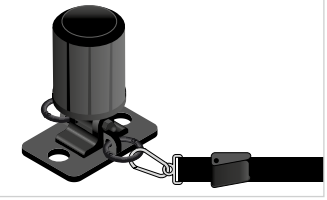

Attach Feet & Leg Ties
Insert the legs securely into the feet, then link all three feet with the adjustable leg ties.
3

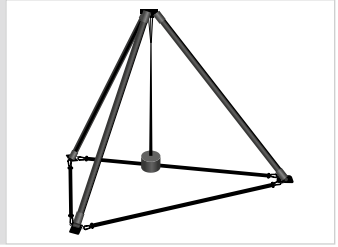

Secure Leg Ties & Central Pull Down
Create stability by securing the leg ties to achieve the leg angle required, then attach all three lines of the central pull down to the loop on the underside of the head mount and attach a weight not exceeding 2kg (4.4lb) (if required).
4
Lock Legs & Peg Down
When legs are positioned as required, tighten using locking screw on head mount. DO NOT OVERTIGHTEN. Secure feet to ground with red rock pegs, or sand bags if on hardstanding.
5
Mount Top Load
Insert adaptor or top load, as required, into head mount and secure with spigot locking screw.
6

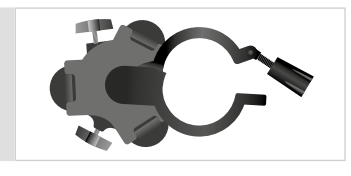

Mast Adaptor (Optional)
If using the tripod as support for a mast, attach the adaptor to align with the curved screw-free edge of the head mount. Close the adaptor around the mast and secure with the screw only when the mast is fully deployed.
Support
+44 (0)1590 688019
enquiries@rolatube.com
RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317
ISO 9001 • CERT 571669
System 50: 1m, 2m & 3m Tripods
Lightweight deployable tripod system • 1m, 2m & 3m configurations
System Specifications
1m115kg Load
2m65kg Load
3m35kg Load
| System Part Number |
Multicam: 953-201000-1-1 Black: 953-201000-3-1 Multicam Alpine*: 953-201000-6-1 Multicam Arid*: 953-201000-8-1 |
| Max Top Load1 | 115kg (255lb) |
| Maximum Payload Height2 | 0.9m (3′) |
| Minimum Payload Height3 | 0.7m (2.3′) |
| System Weight** | 3.5kg (7.7lb) |
| Packed Dimensions | 250 × 320 × 260mm (9.8″ × 12.5″ × 10.2″) |
| Packed Volume | 0.023m³ (0.81ft³) |
| Payload Mount Design | Accepts 30mm (1.1″) diameter spigot and has integral lock screw |
| System Contents |
3 × 50mm (2″) tubes — 1m (3.3′) 1 × Tripod Head Unit (with leg locking mechanism) 3 × Tripod Feet 3 × Tripod Feet Ties 1 × Central Pull Down 3 × Red Rock Pegs 1 × Bag |
| System Part Number |
Multicam: 953-202000-1-1 Black: 953-202000-3-1 Multicam Alpine*: 953-202000-6-1 Multicam Arid*: 953-202000-8-1 |
| Max Top Load1 | 65kg (143lb) |
| Maximum Payload Height2 | 1.9m (6.2′) |
| Minimum Payload Height3 | 1.5m (4.9′) |
| System Weight** | 4.8kg (10.6lb) |
| Packed Dimensions | 250 × 320 × 260mm (9.8″ × 12.5″ × 10.2″) |
| Packed Volume | 0.023m³ (0.81ft³) |
| Payload Mount Design | Accepts 30mm (1.1″) diameter spigot and has integral lock screw |
| System Contents |
3 × 50mm (2″) tubes — 2m (6.6′) 1 × Tripod Head Unit (with leg locking mechanism) 3 × Tripod Feet 3 × Tripod Feet Ties 1 × Central Pull Down 3 × Red Rock Pegs 1 × Bag |
| System Part Number |
Multicam: 953-203000-1-1 Black: 953-203000-3-1 Multicam Alpine*: 953-203000-6-1 Multicam Arid*: 953-203000-8-1 |
| Max Top Load1 | 35kg (77lb) |
| Maximum Payload Height2 | 2.8m (9.2′) |
| Minimum Payload Height3 | 2.2m (7.2′) |
| System Weight** | 6kg (13.2lb) |
| Packed Dimensions | 250 × 320 × 260mm (9.8″ × 12.5″ × 10.2″) |
| Packed Volume | 0.023m³ (0.81ft³) |
| Payload Mount Design | Accepts 30mm (1.1″) diameter spigot and has integral lock screw |
| System Contents |
3 × 50mm (2″) tubes — 3m (9.8′) 1 × Tripod Head Unit (with leg locking mechanism) 3 × Tripod Feet 3 × Tripod Feet Ties 1 × Central Pull Down 3 × Red Rock Pegs 1 × Bag |
| Construct | Leg Body: PP-Glass Fiber composite Leg Cover Material: Nylon Components: High Performance ABS Straps & Bag: Nylon |
| Standard Leg Finishes | Multicam, Black, Multicam Alpine* & Multicam Arid* (other colours possible subject to special order and associated MOQ) |
| Environmental | Compliant with the relevant sections of MIL-STD-810G |
MIL-STD-810G
*MOQ of 5 applies, or 20% surcharge.
** Without pegs.
1 Maximum topload is based on optimal configuration of the tripod legs evenly spaced, leg straps at the minimum spread and deployed on flat ground. If the product is to be used in circumstances different from this, then the RolaTube technical team should be approached to understand the application and provide technical support regarding the appropriate maximum working top load.
2 Based on minimum stable leg deployment width at max rated top load. Different top loads may allow greater variation in payload height.
3 Based on maximum stable leg deployment width at max rated top load. Different top loads may allow greater variation in payload height.
** Without pegs.
1 Maximum topload is based on optimal configuration of the tripod legs evenly spaced, leg straps at the minimum spread and deployed on flat ground. If the product is to be used in circumstances different from this, then the RolaTube technical team should be approached to understand the application and provide technical support regarding the appropriate maximum working top load.
2 Based on minimum stable leg deployment width at max rated top load. Different top loads may allow greater variation in payload height.
3 Based on maximum stable leg deployment width at max rated top load. Different top loads may allow greater variation in payload height.
Product Components
1mComponents
2mComponents
3mComponents
System 50 1m Tripod
| System | Rolatube Part Number | NSN |
|---|---|---|
| System 50 1m Tripod, multicam | 953-201000-1-1 | 5985-99-577-4921 |
| System 50 1m Tripod, black | 953-201000-3-1 | 5985-99-871-6952 |
| System 50 1m Tripod, multicam alpine | 953-201000-6-1 | NSN pending |
| System 50 1m Tripod, multicam arid | 953-201000-8-1 | NSN pending |
| Component | Rolatube Part Number | NSN | Qty |
|---|---|---|---|
| 1m 51mm (3.3′ 2″) tube, multicam | 900-201000-1-0 | 5985-99-750-5740 | 3 |
| 1m 51mm (3.3′ 2″) tube, black | 900-201000-3-0 | 5985-99-236-6272 | 3 |
| 1m 51mm (3.3′ 2″) tube, multicam alpine | 900-201000-6-0 | NSN pending | 3 |
| 1m 51mm (3.3′ 2″) tube, multicam arid | 900-201000-8-0 | NSN pending | 3 |
| Tripod central pull down tie assy 1m system | 207-000090 | 5985-99-555-2616 | 1 |
| Tripod feet ties assy for 1m system × 3 | 207-000089 | 5985-99-985-0909 | 1 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Tripod head unit assy | 800-000108 | 5985-99-958-9830 | 1 |
| Tripod foot assy | 207-000061 | 5985-99-382-2423 | 3 |
| Tripod bag | 502-003061 | 8105-99-616-0381 | 1 |
System 50 2m Tripod
| System | Rolatube Part Number | NSN |
|---|---|---|
| System 50 2m Tripod, multicam | 953-202000-1-1 | 5985-99-154-2465 |
| System 50 2m Tripod, black | 953-202000-3-1 | 5985-99-391-4565 |
| System 50 2m Tripod, multicam alpine | 953-202000-6-1 | NSN pending |
| System 50 2m Tripod, multicam arid | 953-202000-8-1 | NSN pending |
| Component | Rolatube Part Number | NSN | Qty |
|---|---|---|---|
| 2m 51mm (6.6′ 2″) tube, multicam | 900-202000-1-0 | 5985-99-841-3887 | 3 |
| 2m 51mm (6.6′ 2″) tube, black | 900-202000-3-0 | 5985-99-702-8473 | 3 |
| 2m 51mm (6.6′ 2″) tube, multicam alpine | 900-202000-6-0 | NSN pending | 3 |
| 2m 51mm (6.6′ 2″) tube, multicam arid | 900-202000-8-0 | NSN pending | 3 |
| Tripod central pull down tie assy 2/3m system | 207-000080 | 5985-99-512-2412 | 1 |
| Tripod feet ties assy for 2m system × 3 | 207-000082 | 5985-99-841-3885 | 1 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Tripod head unit assy | 800-000108 | 5985-99-958-9830 | 1 |
| Tripod foot assy | 207-000061 | 5985-99-382-2423 | 3 |
| Tripod bag | 502-003061 | 8105-99-616-0381 | 1 |
System 50 3m Tripod
| System | Rolatube Part Number | NSN |
|---|---|---|
| System 50 3m Tripod, multicam | 953-203000-1-1 | 5985-99-471-7639 |
| System 50 3m Tripod, black | 953-203000-3-1 | 5985-99-563-9899 |
| System 50 3m Tripod, multicam alpine | 953-203000-6-1 | NSN pending |
| System 50 3m Tripod, multicam arid | 953-203000-8-1 | NSN pending |
| Component | Rolatube Part Number | NSN | Qty |
|---|---|---|---|
| 3m 51mm (9.8′ 2″) tube, multicam | 900-203000-1-0 | 5985-99-404-9480 | 3 |
| 3m 51mm (9.8′ 2″) tube, black | 900-203000-3-0 | 5985-99-981-9696 | 3 |
| 3m 51mm (9.8′ 2″) tube, multicam alpine | 900-203000-6-0 | NSN pending | 3 |
| 3m 51mm (9.8′ 2″) tube, multicam arid | 900-203000-8-0 | NSN pending | 3 |
| Tripod central pull down tie assy 2/3m system | 207-000080 | 5985-99-512-2412 | 1 |
| Tripod feet ties assy for 3m system × 3 | 207-000081 | 5985-99-513-9721 | 1 |
| Red Rock Peg | 207-002008 | 4030-99-847-5233 | 3 |
| Tripod head unit assy | 800-000108 | 5985-99-958-9830 | 1 |
| Tripod foot assy | 207-000061 | 5985-99-382-2423 | 3 |
| Tripod bag | 502-003061 | 8105-99-616-0381 | 1 |
Optional Accessories
| Component | Rolatube Part Number | NSN |
|---|---|---|
| Adaptor to provide support for System 75 single tube mast system | 800-000008 | 5985-99-841-3889 |
| Adaptor to provide support for System 75 double tube mast system | 800-000012 | 5985-99-617-9035 |
| Adaptor to provide support for System 100 mast system | 800-000037 | 5985-99-472-1260 |
Please note: ALL optional accessories can only be used with a mast / tripod system.
