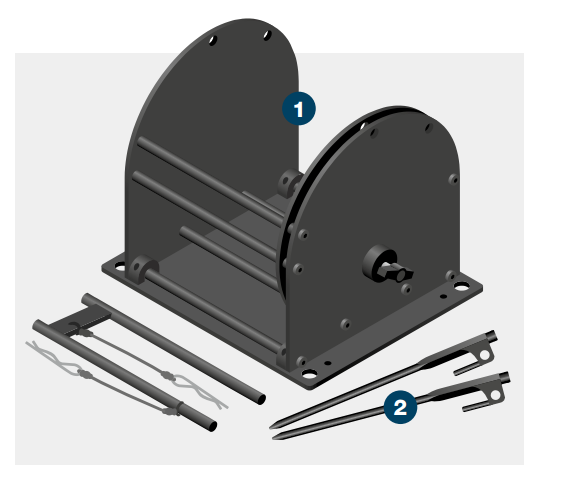

| Item | Description |
|---|---|
| 1 | 1 × Rolacage |
| 2 | 2 × Black rock peg |
The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.
- Before deploying the mast please read all warnings below.
- Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
- Do not use the mast if there is visible damage.
- The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
- Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
- Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
- Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
- Do not exceed the rated top load of the mast.
- Ensure any top load is securely fastened.
- Do not allow the mast to bend.
- Ensure the deployment site is clear of any underground hazards before using pegs.
- Ensure guy ropes and pegs are secure for duration of deployment.
- Consideration must be given to the location of any cable from the top load to avoid trip hazards.
- Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
- Rolatube masts are only designed to function in the vertical axis.
- Deploy the mast with the slot facing away from any prevailing wind.

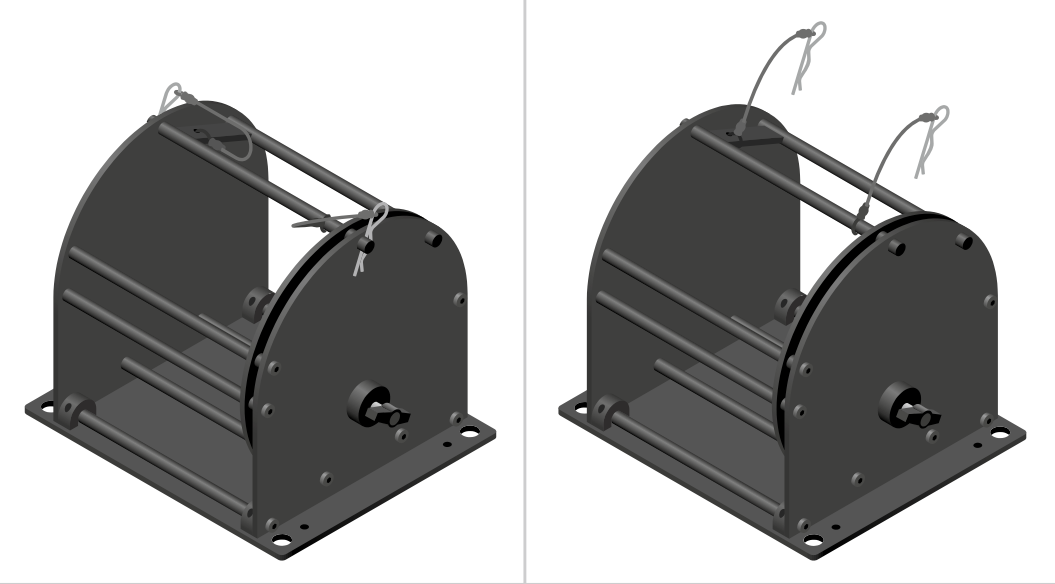

Remove Retaining Pins
Remove the retaining pins that hold the top two bars in place.

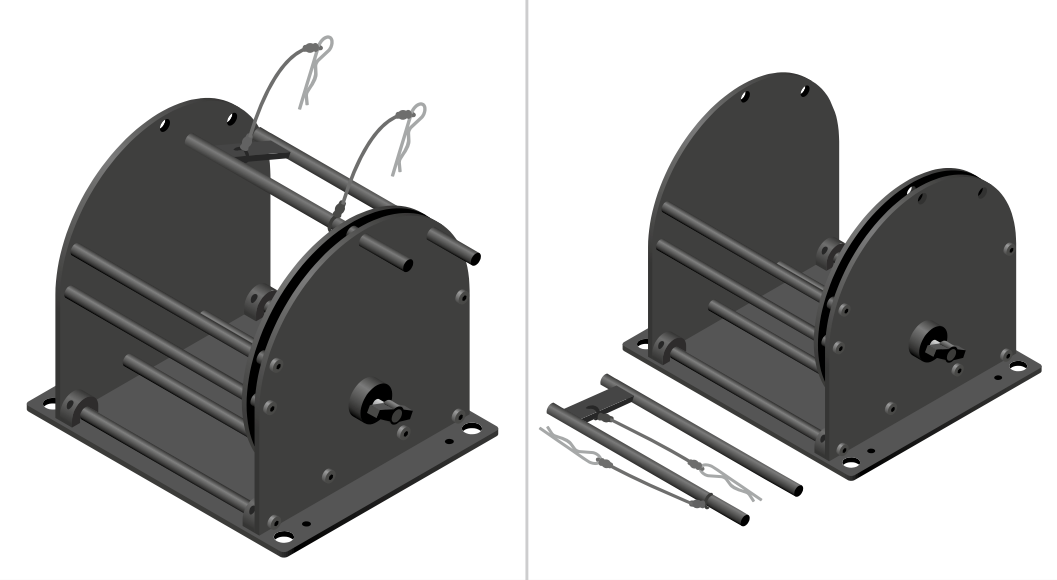

Slide Out Top Bars
Slide out the two top bars.

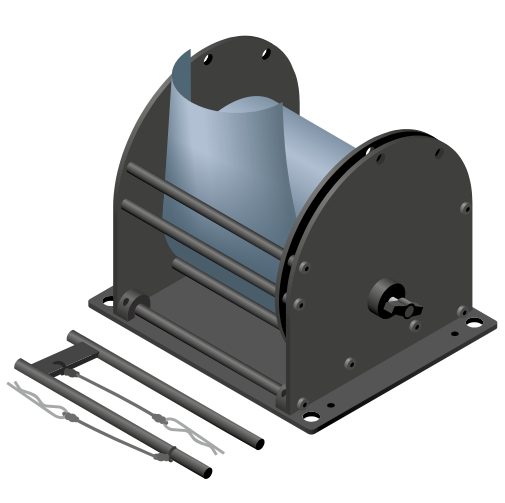

Insert Mast into Rolacage
Drop the mast into the Rolacage with the mast slot facing where the bars have been removed.

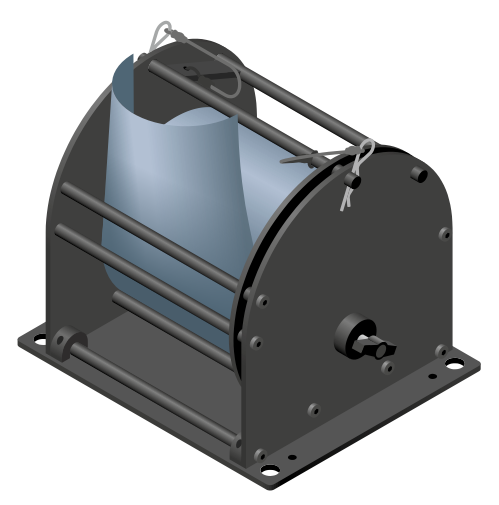

Replace Bars & Retaining Pins
Replace the removed bars and retaining pins.

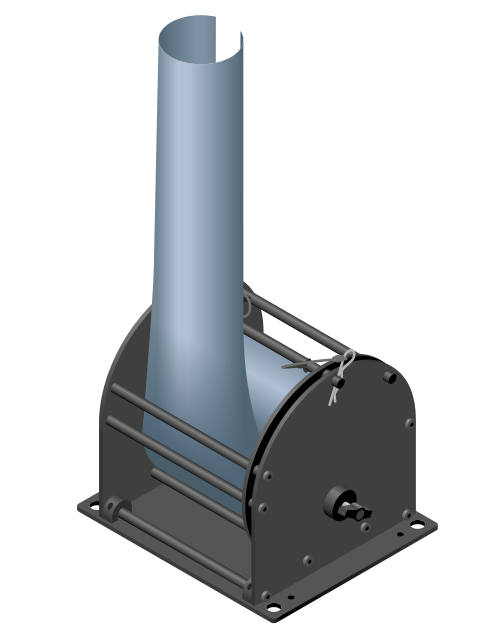

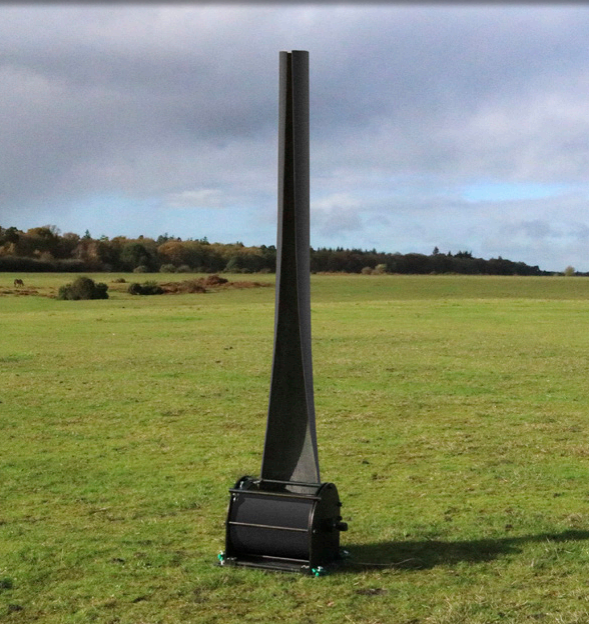

Secure & Deploy Mast
Secure the corners diagonally opposite of the Rolacage with pegs, then unroll the mast. Follow the instructions within the User Guide for the mast deployment. When unrolled to desired height, secure with the screw brake on the side.
+44 (0)1590 688019
enquiries@rolatube.com
RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317
Rolacage
For use with System 75 single tube mast systems
| Description | Rolacage — Deployment Aid |
| Purpose | Increases ease and speed of deployment of System 75 single tube mast systems. Enables deployment to be halted at any height through use of the brake. Can be vehicle mounted. |
| Compatibility | All System 75 single tube mast systems |
| Weight | 2.6kg (5.7lb) |
| Length | 330mm (12.9″) |
| Width | 272mm (10.7″) |
| Depth | 273mm (10.7″) |
Materials
| Cage Body | Thermoplastic |
| Bars | Aluminium Alloy |
| Product | Part Number | NSN |
|---|---|---|
| Rolacage for System 75 | 800-007102 | 5985-99-397-9209 |
- Brake control — Halt deployment at any height using the screw brake
- No spindle — Mast inserts loose; design does not need a central spindle
- Vehicle mountable — Can be permanently mounted to a vehicle for rapid deployment
- Lightweight — Just 2.6kg (5.7lb) total weight
- Compact — 330 × 272 × 273mm footprint
- Robust construction — Thermoplastic body with aluminium alloy bars
