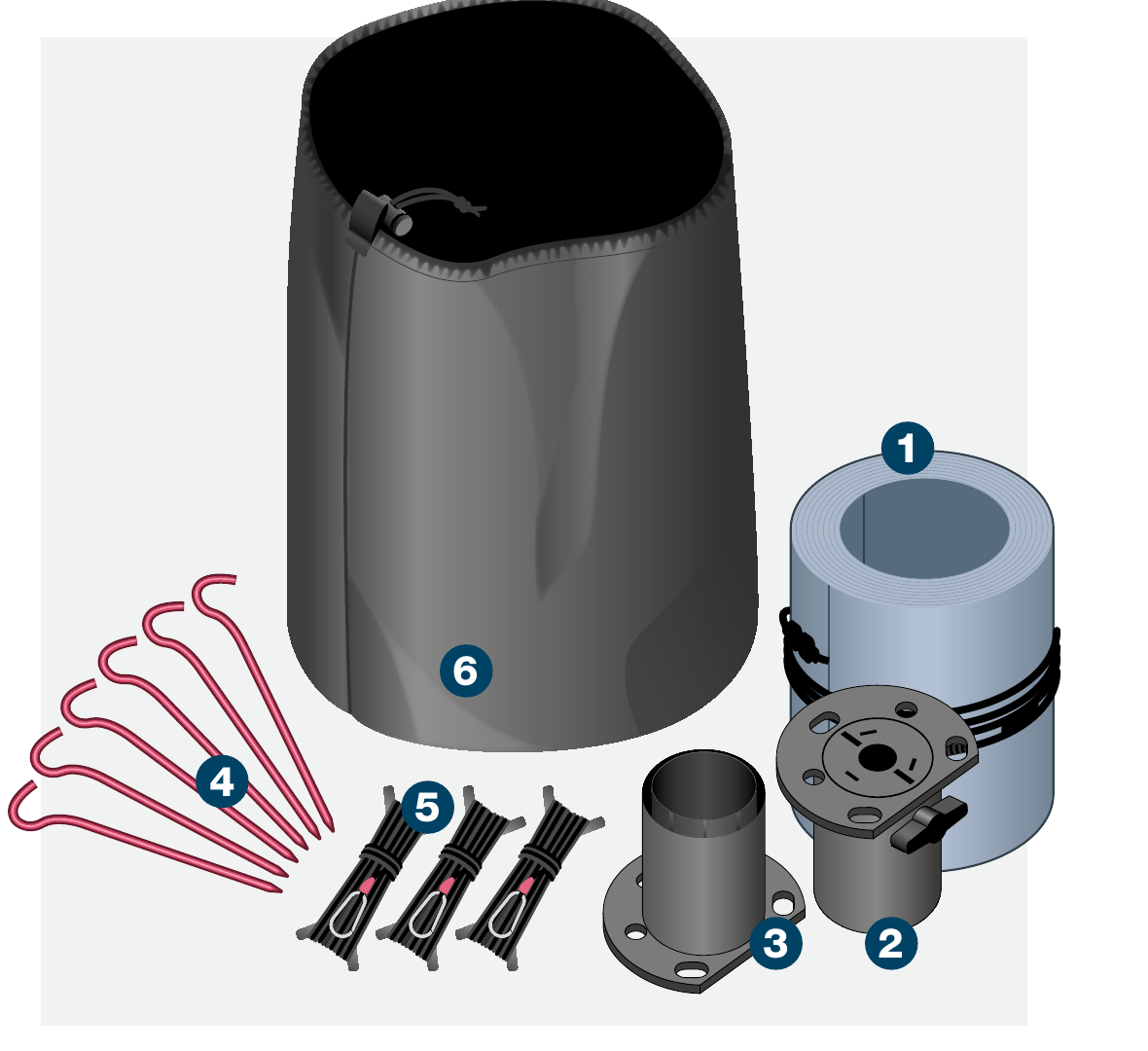

| Item | Description |
|---|---|
| 1 | 3.5m 51mm (11.5′ 2″) ‘RESQ’ Integrated Antenna Mast with n-type male connector |
| 2 | 1 × 51mm (2″) top cap |
| 3 | 1 × 51mm (2″) base cap |
| 4 | 6 × Red rock pegs |
| 5 | 3 × Guy ropes |
| 6 | 1 × Bag |
The system is rated to the load stated. The end user is responsible for ensuring the loads are securely fastened. Rolatube Technology does not accept liability or provide warranty for usage deviating from the enclosed instructions.
- Before deploying the mast please read all warnings below.
- Avoid contact with heavy and sharp objects, in storage do not stack anything on top of Rolatubes.
- Do not use the mast if there is visible damage.
- The end user must assess the suitability of the pegs provided for the intended deployment environment, and replace with more suitable products if necessary.
- Rolatube mast systems are rated for wind speeds of up to 100kph (62mph). The maximum wind rating is based on the bare mast correctly deployed and guyed. The end user or system integrator is responsible for ensuring the system is safe with the top load mounted.
- Ensure the deployment site is clear of any cables or equipment that represents an electric shock hazard.
- Do not deploy near power lines, in thunderstorms or winds exceeding 100kph (62mph).
- Do not exceed the rated top load of the mast.
- Ensure any top load is securely fastened.
- Do not allow the mast to bend.
- Ensure the deployment site is clear of any underground hazards before using pegs.
- Ensure guy ropes and pegs are secure for duration of deployment.
- Consideration must be given to the location of any cable from the top load to avoid trip hazards.
- Consideration must be given when deploying in proximity to an aircraft landing site for aircraft movement.
- Rolatube masts are only designed to function in the vertical axis.
- Deploy the mast with the slot facing away from any prevailing wind.
Remove & Unclip
Remove IAM from the bag and unclip the cable.
Unwind & Unroll
Unwind cable then unroll the IAM.
Connect Radio & Lift
Connect radio then lift IAM to gain height for transmission.
Optional: additional height can be gained by using a line through the rigging hole to haul over a tree branch or other structure.
Recovery — Roll from Correct End
For recovery, ensure the IAM is rolled from the appropriate end, following guidelines on label.
Secure Cable
Wrap cable around the rolled IAM and secure using the supplied clip.

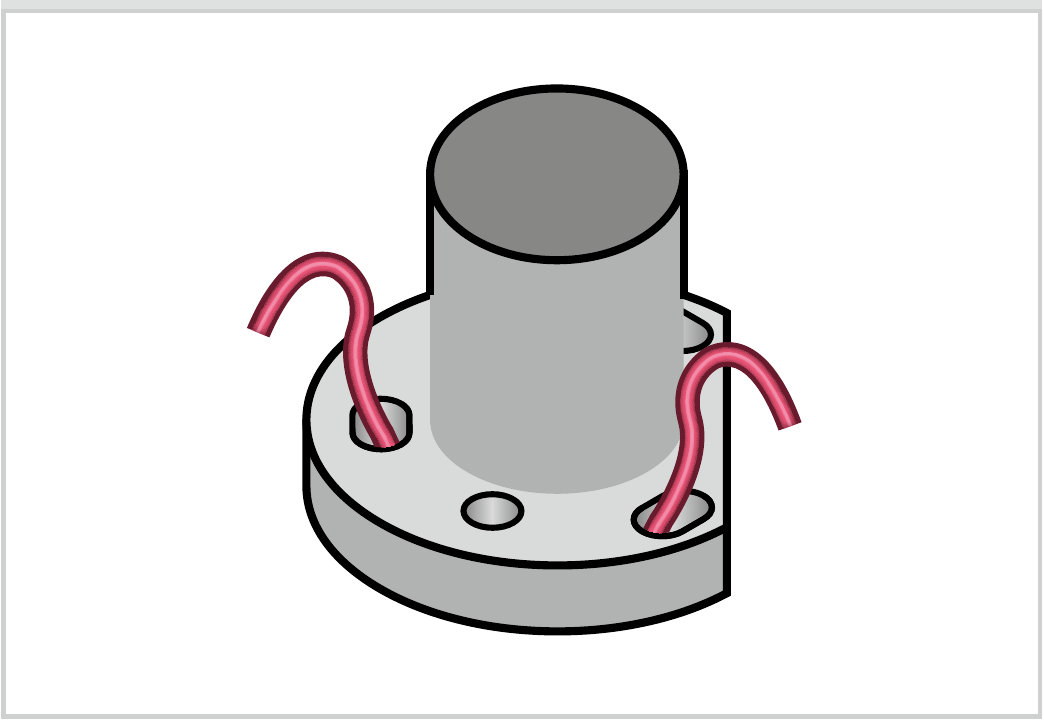

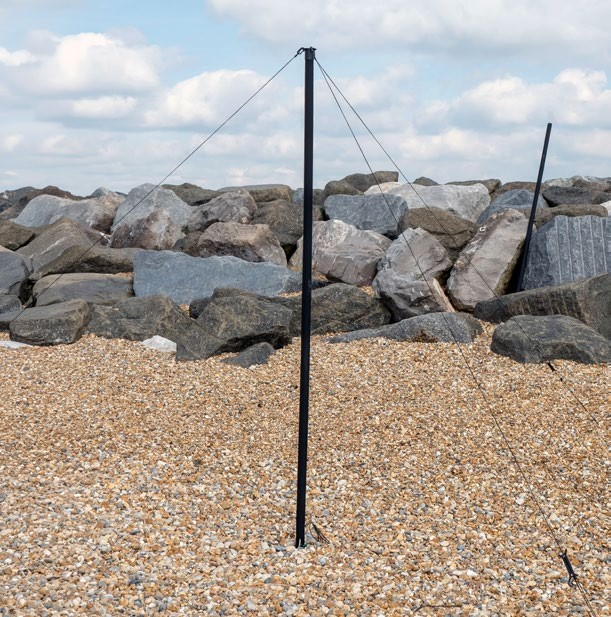

Position Base Cap
Person 1: Place the flat side of the base cap away from the wind and secure with pegs.
Pace Out Guy Ropes
Person 2: Using the pegs in the base cap for guidance, lay guy ropes’ snaphooks next to IAM. Pace out the 3 guy ropes to 2.5m (8.2′). Insert pegs in ground, attach guy ropes and return to IAM.
Fit Top Cap
Person 1: Unroll the IAM and place the top cap on the IAM with flat edge aligned to slot, and clip on guy ropes. The cable comes out of the bottom of the IAM.

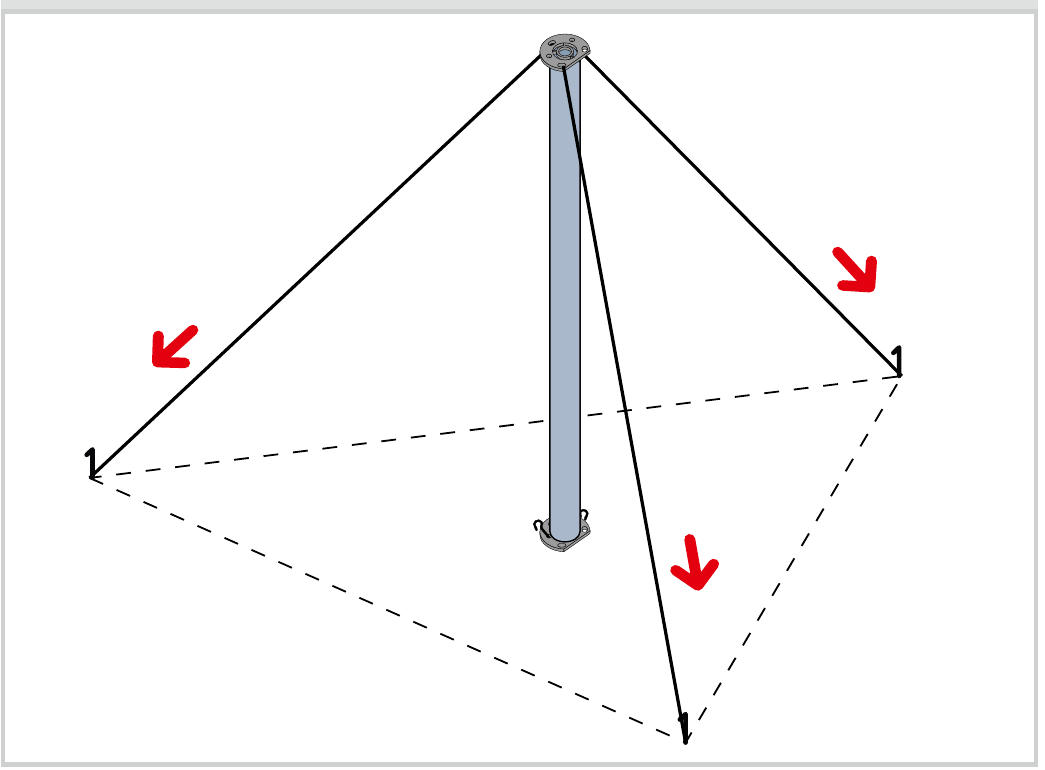

Lift into Base Cap & Secure
Person 1: Lift the IAM into the base cap and support. Person 2: Secure the 3 guy ropes to the red rock pegs and tighten guy ropes sufficiently to maintain stability. Do not overtighten.
Connect to Radio
Connect to radio.
+44 (0)1590 688019
enquiries@rolatube.com
RTL Materials Ltd trading as Rolatube Technology
130 Wellworthy Road, Ampress Park, Lymington SO41 8JY, UK
Registered in England & Wales No. 3332020 • VAT Reg 706 972 317

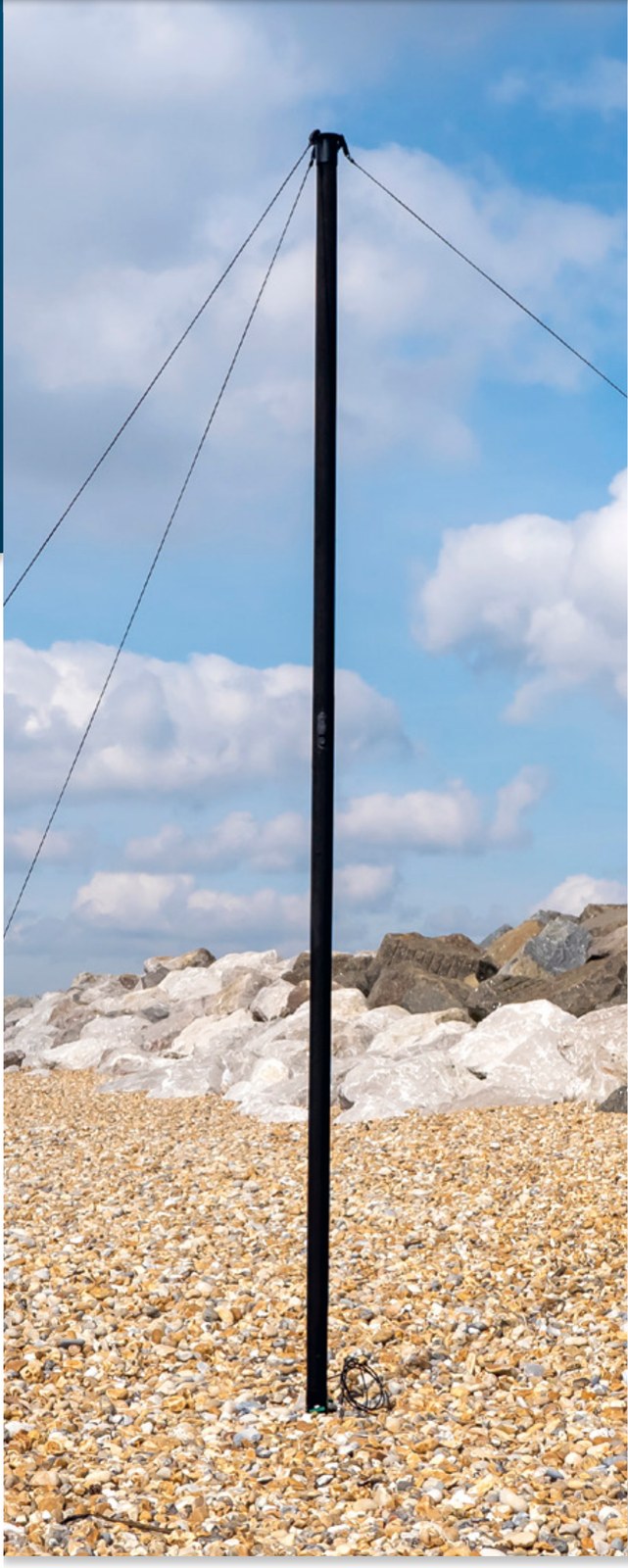

System IAM: 3.5m ‘RESQ’
136–175MHz Integrated Antenna Mast — vertically polarised omnidirectional dipole
| System Name | System IAM 3.5m ‘RESQ’ 136-175MHz |
| System Part Number |
Black: 952-203510-3-1 Orange: 952-203510-5-1 Blue: 952-203510-7-1 |
| Deployed Height | 3.5m (11.5′) |
| Deployed Tube ID | 51mm (2″) |
| Mast Packed / Rolled Dimensions W×H×D | 150 × 150 × 150mm (6″ × 6″ × 6″) |
| System Weight* | 2.3kg (5.1lb) |
| Frequency Range | 136 – 175MHz |
| Radiation Pattern | Omnidirectional |
| Antenna Format | Vertically Polarised Dipole |
| Nominal Gain | 2.2 dBi |
| VSWR | < 2.1:1 |
| Power Rating1 | 25W c.w. |
| Impedance | 50 ohms nominal |
| Connection Type | N-type(m) plug |
| System Contents |
1 × 3.5m 51mm (11.5′ 2″) Integrated Antenna Mast 1 × Top Cap 3 × Guy Ropes 1 × Base Cap 6 × Red Rock Pegs 1 × Bag |
| Construct & Finish | Mast Body: PP-glass fibre composite with integrated dipole antenna External Finish: Polyester woven fabric in black, blue & orange Other colours available but MOQ will apply |
| Environmental | Operating Temp Range: -32°C to +49°C Storage Temp Range: -33°C to +71°C Waterproof & UV resistant |
1 Stated power rating is based on continuous transmit. Higher powers may be used depending on duty cycle and transmission duration protocols. Please contact your Rolatube representative to discuss your requirements before exceeding 25W.
1.0 VSWR
Rolatube 3.5m RESQ Integrated Antenna Mast (136 – 175 MHz) — VSWR Trace

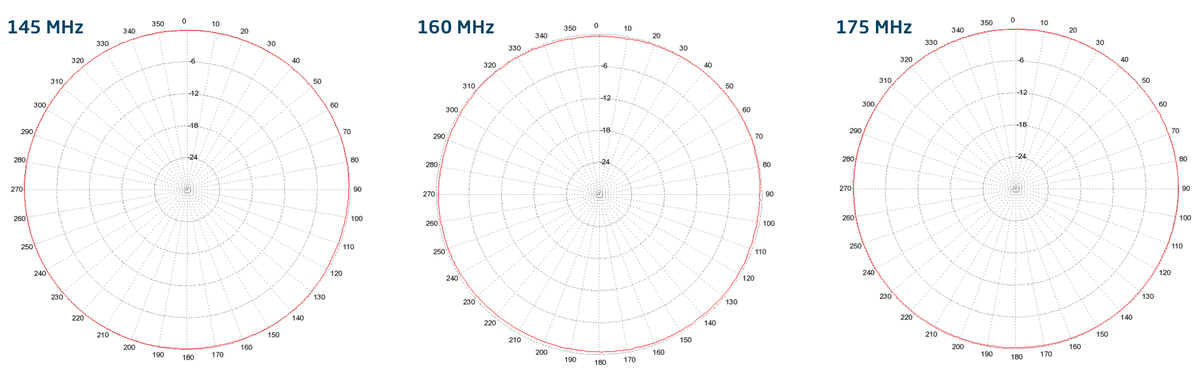

2.0 Polar Plots (Gain dB)
145 MHz • 160 MHz • 175 MHz
3.0 Swept Gain (dBi)
3.5m RESQ Swept Gain
System
| System | Part Number |
|---|---|
| System IAM 3.5m ‘RESQ’ 136-175MHz, Black | 952-203510-3-1 |
| System IAM 3.5m ‘RESQ’ 136-175MHz, Orange | 952-203510-5-1 |
| System IAM 3.5m ‘RESQ’ 136-175MHz, Blue | 952-203510-7-1 |
Components
| Component | Part Number | Qty |
|---|---|---|
| 3.5m 51mm (11.5′ 2″) ‘RESQ’ 136-175MHz IAM only, Black | 902-203510-3-0 | 1 |
| 3.5m 51mm (11.5′ 2″) ‘RESQ’ 136-175MHz IAM only, Orange | 902-203510-5-0 | 1 |
| 3.5m 51mm (11.5′ 2″) ‘RESQ’ 136-175MHz IAM only, Blue | 902-203510-7-0 | 1 |
| Top cap | 800-001007 | 1 |
| Base cap | 800-001004 | 1 |
| Set of 3 × 5.5m (18′) guy ropes | 207-004006 | 1 |
| Red Rock Peg | 207-002008 | 6 |
| Bag | 502-003021 | 1 |
| Optional Accessory | Part Number |
|---|---|
| 3.5m IAM Mount for System 75 | 800-006200 |
| 3.5m IAM Mount for System 100 | 800-006210 |
